Product Overview:

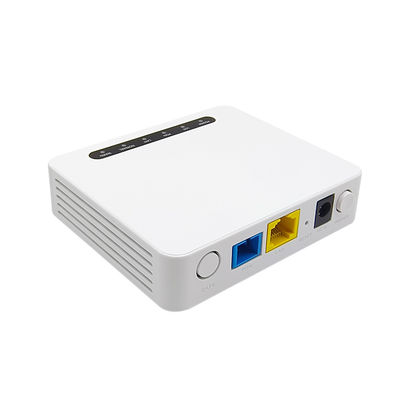

ZIKUN ZC-501 FTTH is a XPON Optical Network Terminal designed for FTTH. It provides high-performance forwarding capabilities to ensure excellent experience with Internet and HD video services. It has a small, smart appearance and green, energy-saving advantage.
ZIKUN GPON ONT Series of ONTs for FTTX deployment scenarios cover various user interfaces: FE, GE, POTS, RF, Wi-Fi, USB and suitable for digital home networks. They are supporting the latest Wi-Fi 802.11n technology for higher bandwidth access. Easy OAM saves OPEX – support TR069, zero-touch and batch configuration. All EDGE Technologies provided ZIKUN XPON ONT has Multiple certifications – CE, FCC, RoHS, CoC, Wi-Fi.
Product Feature:
* Supported service: Internet, IPTV
* GPON: 8 T-CONTs, 32 GEM Ports
* VLAN: 802.1Q, 802.1P, 802.1ad
* MAC address table: 256
* Multicast: IGMP v1/v2 Snooping
* Multicast group per user port: 256
* QoS: service flow classification based on physical port, Ethernet type; ingress rate limit; egress shaping
* Management: local web management, OMCI
Parameters
|
Model
|
ZC-501
|
|
Optical port
|
1 GPON/EPON port(EPON PX20+ and GPON Class B+) |
|
Transmit rate
|
2.488Gbps downstream; 1.244Gbps upstream
|
|
User-Network Interface |
1 x10/100/1000Base-T
|
|
Wavelength
|
Receiving: 1480~1500 nm Transmitting: 1290~1330 nm
|
|
Receiving Sensitivity
|
-28dBm
|
|
Transmitting Optical Power
|
0.5~5dBm
|
|
Power consumption
|
<6W
|
|
Dimensions
|
2.8CM*9CM*11CM
|
|
Working temperature:
|
0oC ~ 40oC
|
|
Working humidity
|
5% ~ 95%
|
|
Weight
|
190g
|
|
Power supply
|
12V DC
|
