ZIKUN ZC-500N XG-PON ONU 4GE supports L3 function GPON XGS-PON ONT
Introduction
ZC-500N XG-PON ONU( 4GE+1POTS(option)+1USB2.0+1USB3.0) is designed for fulfilling FTTH and triple play service demand of fixed network operators. These boxes are based on the mature Chipset (Realtek) technology, which have high ratio of performance to price, and the technology of IEEE802.11b/g/n/ac WiFi, Layer 2/3, and high quality VoIP as well. Support full management of HGU devices through ZIKUN OLT. They are highly reliable and easy to maintain, with guaranteed QoS for different service. And they are fully compliant with technical regulations such as IEEE802.3ah,ITU-T G.984.x and technical requirement of GPON Equipment from China Telecom.

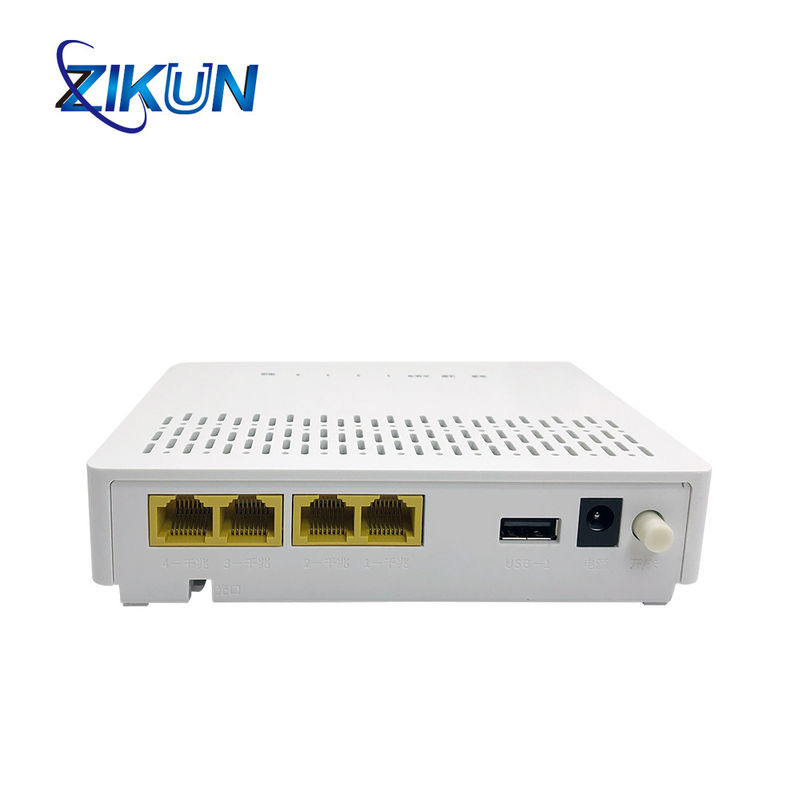

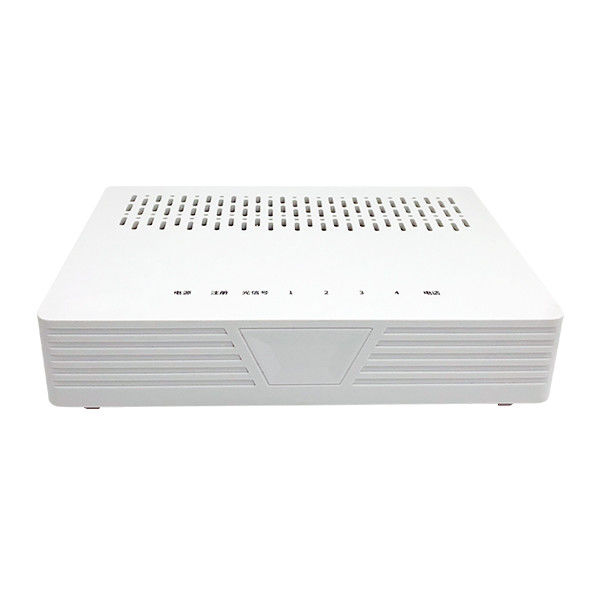

ZC-500N XG-PON ONT ONU 4GE+1POTS(option)+1USB2.0+1USB3.0
Specifications
| GPON interface(NNI):1 x XG-PON interface | ||
| Optical port | CLass N2a optical system | |
| Optical connector | SC/APC | |
| Receiving Sensitivity | -28dBm | |
| Overload optical power | -8 dBm | |
| Transmitting Optical Power | 0.5~5dBm | |
| Transmit rate | 9.953Gbit/s downstream; 2.488Gbps upstream | |
| Wavelength | Receiving(DOWN):1577nm；Transmitting(UP):1270nm | |
| Authentication | SN/ Password/LOID /LOID+Password authentication | |
| User Network Interface(UNI):4GE+1POTS(option)+1USB2.0+1USB3.0 | ||
|
Ethernet Port
|
• Ethernet port-based VLAN tags and tag removal | |
| • VLAN transparent and aggregation | ||
| • MAC address learning | ||
| • Q-in-Q | ||
| • Auto-adaptive 10 Mbit/s, 100 Mbit/s or 1000 Mbit/s | ||
|
POTS Port (option) |
• SIP/H.248 | |
| • Call waiting, Inconditional Call Forward, Call Forward if Busy,Call Forward if no reply and Three-party calls. | ||
| • G.711A/U, G.729 and G.722 encoding/decoding | ||
| • SDP protocol (RFC 2327 and RFC 4566) | ||
| • T.30/T.38/G.711 fax mode | ||
| • DTMF | ||
| • Emergency calls (with the SIP/H.248 protocol) | ||
| USB port | • USB2.0/USB3.0 | |
| • FTP-based network storage | ||
| • File/Print sharing based on SAMBA | ||
| • DLNA DMS/UPnP AV (media server) | ||
| Product Function | ||
| GPON | • ITU-T G.987.1-4 | |
| • ITU-T G.988 | ||
| • 32 TCONTs /256GEM ports | ||
| • 8 Egress queues per TCONT at least | ||
| • VLAN or VLAN plus priority gem mapping mode | ||
| • Performance monitoring: eth/Gem port | ||
|
• Dying gasp |
||
| Layer 2 Features | • MAC learning (SVL)/aging | |
| • Support max frame length to 1518 bytes | ||
| • VLAN tagging for untagged packets | ||
| • Support VLAN 1-4094 | ||
| • VLAN transparent/translation | ||
| Layer 3 Features | • PPPoE/Static IP/DHCP/Bridge | |
| • NAT | ||
| • Port forwarding | ||
| • ALG, UPnP | ||
| • DDNS/DNS server/DNS client | ||
| • IPv6/IPv4 dual stack,and DS-Lite | ||
| • Static/Default routes | ||
| • Multiple services on one WAN port | ||
| • RIPv2 with passive mode | ||
| Multicast | • IGMP v2 (RFC 2236) and IGMP v3 (RFC 3376) | |
| • IGMP snooping and IGMP Proxy | ||
| • MLD v1/v2 | ||
| Qos | • Support 8 Queues with Strict Priority | |
| • Ethernet port rate limitation | ||
| • SP/WRR/SP+WRR | ||
| • Service flow classification | ||
| Management | • OMCI/TR069 | |
| • Web UI(Http by LAN and WAN) | ||
| • Telnet(Telnet by LAN and WAN) | ||
| • SSH management with CLI commands | ||
| • Dual-system software backup and rollback | ||
| Physical Performance | ||
| Dimensions ( W x Dx H) | 14CM*10.2CM*3.2CM | |
| Weight | About 400g | |
| Working temperature | 0°C ~ 45°C | |
| Working humidity | 5% RH to 95% RH (non-condensing) | |
| Power adapter input | 100–240 V AC, 50 / 60 Hz | |
| System power supply | 12V DC, 1 A | |
| Power consumption | <10W | |
| System Configuration | ||
| Main Chip | ZTE ZXIC ZX279131, 1.2GHz Dual core | |
| RAM | 512MB DDR3 | |
| Flash | 128MB NAND | |
