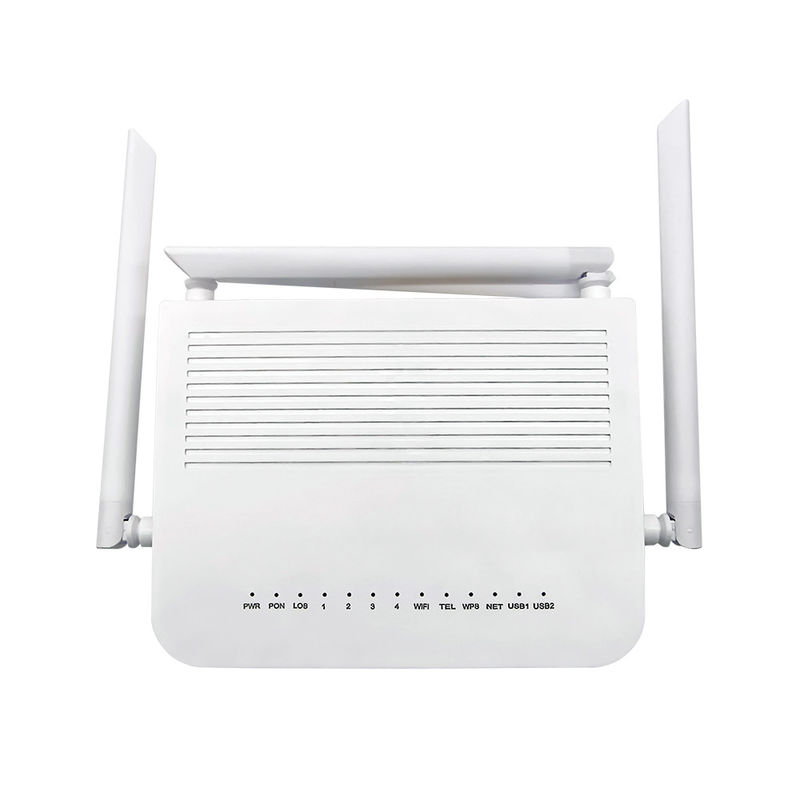

FTTH AX3000 WiFi6 XG-PON ONU ZIKUN 4GE DualBand ONT Five External Antenna
Product Description
ZC-530NX6 is fiber to the home multi service access XS-PON ONU. ZC-530NX6 with 4GE+1POTS(option)+AX3000 WiFi 6 port .It’s based on the mature, stable, high cost performance PON technology and has gigabit Ethernet switching, WDM and HFC technology. ZC-530NX6 has a higher bandwidth, higher reliability, easy management and good quality of service (QoS) guarantee with technical performance of equipment meet the ITU G. 984 requirements and have good compatibility with third party manufacturers OLT.
Application
Gigabit Fiber XG-PON WiFi ONT ZC-530NX6

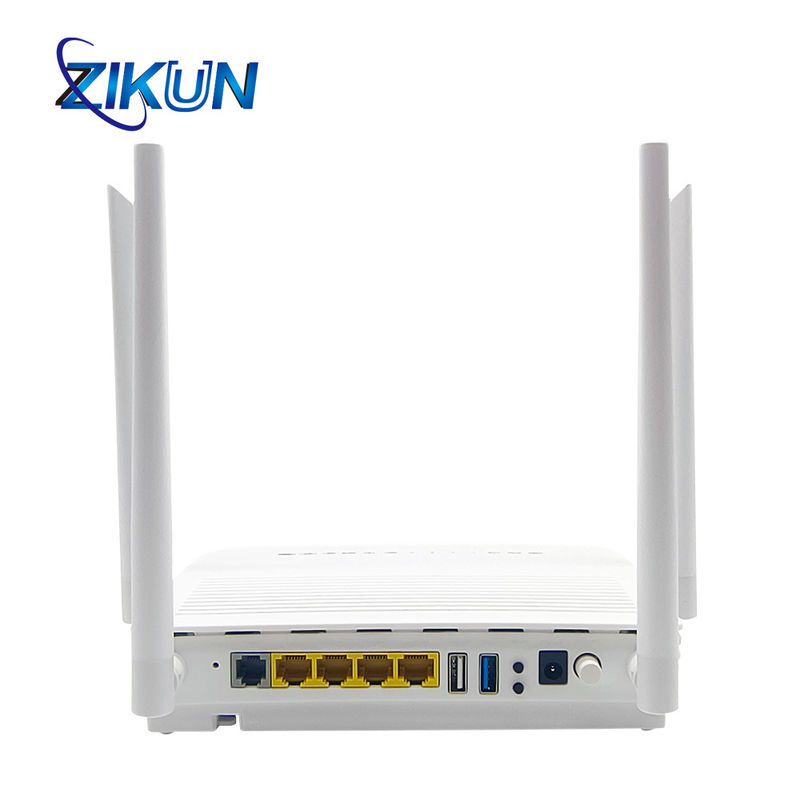

XG-PON | 4*GE | AX3000 WiFi6 | 1USB2.0+1USB3.0
Specifications
| GPON interface(NNI):1 x XG-PON interface | ||
| Optical port | CLass N2a optical system | |
| Optical connector | SC/UPC | |
| Receiving Sensitivity | -28dBm | |
| Overload optical power | -8 dBm | |
| Transmitting Optical Power | 0.5~5dBm | |
| Transmit rate | 9.953Gbit/s downstream; 2.488Gbps upstream | |
| Wavelength | Receiving(DOWN):1577nm；Transmitting(UP):1270nm | |
| Authentication | SN/ Password/LOID /LOID+Password authentication | |
Physical Performance
| Dimensions ( W x Dx H) |
18.7CM*12.6CM*4CM(withoutexternalantennaandpads)
|
|
| Weight | About 400g | |
| Working temperature | 0°C ~ 45°C | |
| Working humidity | 5% RH to 95% RH (non-condensing) | |
| Power adapter input | 100–240 V AC, 50 / 60 Hz | |
| System power supply | 12V DC, 1.5 A | |
| Power consumption | <15W | |
System Configuration
| Main Chip | ZTE ZXIC ZX279131, 1.2GHz Dual core | |
| RAM | 512MB | |
| Flash | 256MB | |
| WiFi Chip | MTK MT7976DN(RF front-end chip)+MT7916DAN(WIFI chip ) | |
