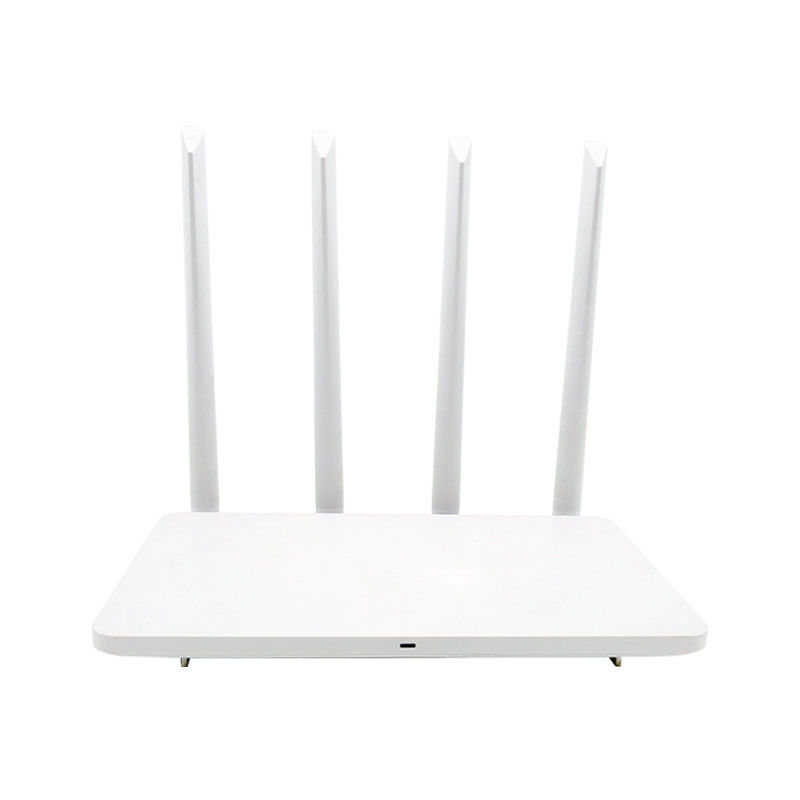

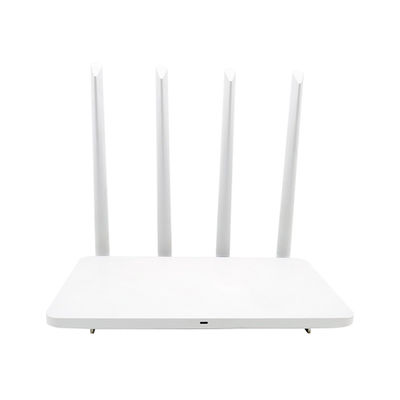

Dual Band 5G Wireless WiFi Router 2.4G / 5G Smart Network Wifi Router

Dual Band 5G Wireless WiFi Router 2.4G / 5G Smart Network Wifi Router

  • High Light

    Dual Band 5G Wireless WiFi Router

    ,

    Smart 5G Wireless WiFi Router

    ,

    2.4G Network Wifi Router

  • Modulation
    OFDM = BPSK,QPSK,16-QAM,64-QAM,256QAM
  • WiFi Antenna
    4x 5dBi External Antenna
  • Flash
    128MB
  • RAM
    128MB
  • Mesh Functions
    Support Mesh Networking
  • Dimensions
    200x122.5x29.7 Mm
  • Transmission Rate
    2.4G:Up To 300Mbps 5G:Up To 867Mbps
  • Brand Name
    ZIKUN
  • Model Number
    ZC-R540
  • Minimum Order Quantity
    1
  • Price
    Negotiable
  • Delivery Time
    5-7 work days
  • Payment Terms
    T/T

Dual Band 5G Wireless WiFi Router 2.4G / 5G Smart Network Wifi Router

New Super Fast 5G Wireless WiFi Router 5G WIFI 5 2.4G/5g Dual Band









Overview



With Gigabit speeds complaint with IEEE802.11ac, the ZC-R540 smart dual-band WiFi router offers throughput as high as 1167Mbps.
Powered with the latest features including beamforming+ technology and the innovative MU-MIMO, that's just the start. With the 28nm CPU, independent power amplifiers, four 5dBi high-gain antennas, you are assured to have an uninterrupted gaming experience and 4K video streaming.
ZC-R540 has great eco credentials too. With a power saving function, App-based management and migration of PPPoE user credentials allows for a smarter and eco-friendly digital life.









Main Features



• 11ac speed up to 1167Mbps (5GHz: 867Mbps + 2.4GHz: 300Mbps)
• Realtek chipset for stable and fast WiFi connection
• High powered amplifiers and external antennas for whole-home coverage
• Beamforming+ for longer range of IEEE802.11ac-compliant WiFi clients
• Innovative MU-MIMO technology for more connected clients
• Smart WiFi Schedule for lower power consumption
• Migration PPPoE user name and password for hassle-free configuration







AC1200 Smart Dual-Band WiFi Router



Dual Band 5G Wireless WiFi Router 2.4G / 5G Smart Network Wifi Router 0

AC1200 Dual-band Gigabit Wireless Router
Designed with full gigabit ports, support up to 1000 Mbps bandwidth access,Dual-band provide 1167 Mbps access, fully utilise the gigabit fibre.









Specifications



Chipset EN7561+MT7592N+MT7513BEN
CPU Frequency 900MHz Dual-core
Flash 128MB
RAM 128MB

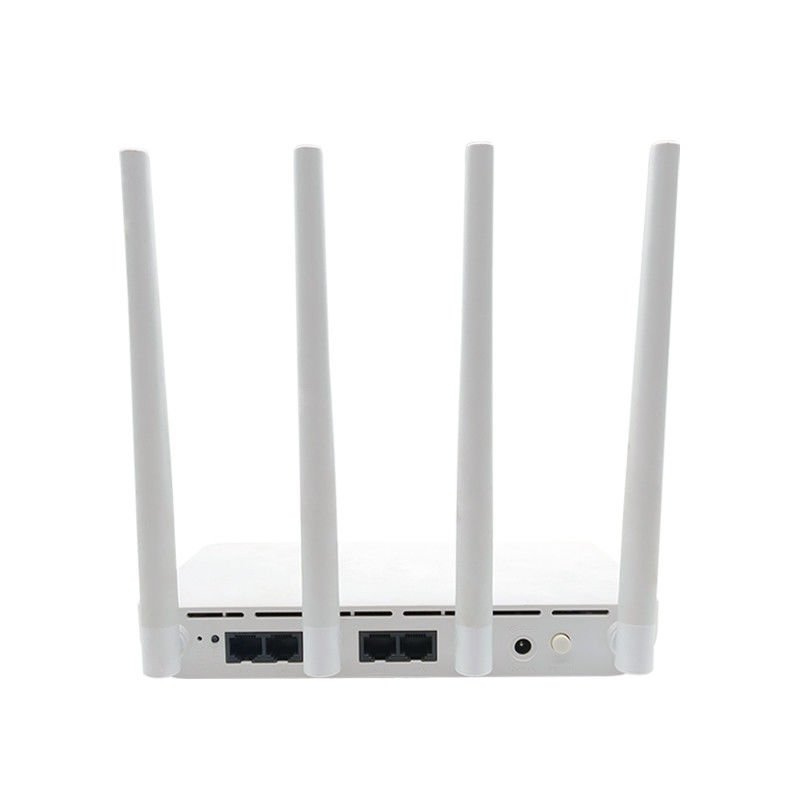

Device Interface

3x RJ45 10M/100M/1000M LAN

1x RJ45 10M/100M/1000M WAN

1xReset button + 1xWPS/MESH button

1xPower Jack

WiFi Antenna 4x 5dBi External Antenna
LED 1xPower/WAN/LAN







WIRELESS FEATURES



Wireless Standards 2.4G:IEEE802.11 b/g/n
  5G:IEEE802.11 n/ac
Frequency 2.4G:2T2R MIMO
  5G:4T4R MU-MIMO
Transmission Rate 2.4G:Up to 300Mbps
  5G:Up to 867Mbps
Wireless Security 64/128-bit WEP, WPA / WPA2, WPA-PSK/ WPA2-PSK encryption

Reception Sensitivity



5G:

11a 54M:-70dBm

11ac VHT20 MCS8:-64dBm

11ac VHT40 MCS9:-59dBm

11ac VHT80 MCS9:-56dBm



2.4G:

11a 54M:-70dBm

11ac VHT20 MCS8:-64dBm

11ac VHT40 MCS9:-59dBm

11ac VHT80 MCS9:-56dBm

Transmit Power <20dBm(2.4GHz)
  <23dBm(5GHz)
Modulation OFDM = BPSK,QPSK,16-QAM,64-QAM,256QAM
  DSSS = DBPSK,DQPSK,CCK







Dimensions 200x122.5x29.7 mm
Operating Temperature 0°C~40°C
Storage Temperature -20°C ~ 60°C
Power Supply 12V/1A
Operating Humidity 5%~95% (non-condensing)
