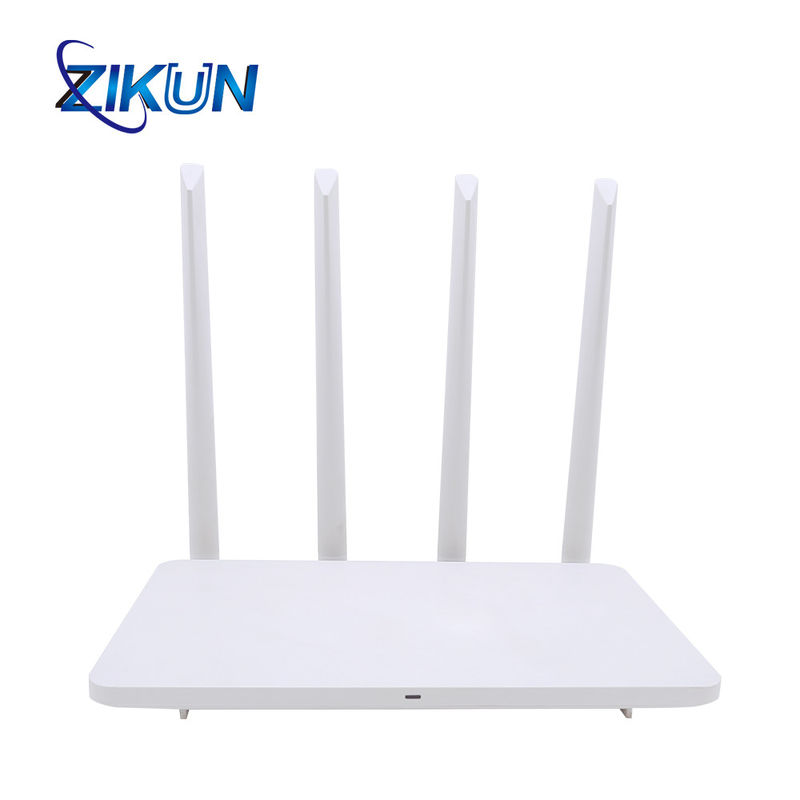

4 Ports AC1200 MU MIMO WiFi Mesh Routers Dual Band 128MB ZIKUN ZC-R540

4 Ports AC1200 MU MIMO WiFi Mesh Routers Dual Band 128MB ZIKUN ZC-R540

  • High Light

    AC1200 WiFi Mesh Routers

    ,

    128MB WiFi Mesh Routers

    ,

    Dual Band MU MIMO Mesh Router

  • Modulation
    OFDM = BPSK,QPSK,16-QAM,64-QAM,256QAM
  • WiFi Antenna
    4x 5dBi External Antenna
  • Flash
    128MB
  • RAM
    128MB
  • CPU Frequency
    900MHz Dual-core
  • Wireless Standards
    2.4G:IEEE802.11 B/g/n ,5G:IEEE802.11 N/ac
  • Mesh Functions
    Support Mesh Networking
  • Dimensions
    200x122.5x29.7 Mm
  • Brand Name
    ZIKUN
  • Model Number
    ZC-R540
  • Minimum Order Quantity
    1
  • Price
    Negotiable
  • Delivery Time
    5-7 work days
  • Payment Terms
    T/T

4 Ports AC1200 MU MIMO WiFi Mesh Routers Dual Band 128MB ZIKUN ZC-R540

ZIKUN Router 4 Ports ZC-R540 AC1200 WiFi 5 MU-MIMO Wifi Router





Overview



ZC-R540 is an AC1200 dual band WiFi router, designed for medium-sized apartment with a 100Mbps fiber access. It provides WiFi speed up to 1167 Mbps (5GHz: 867Mbps and 2.4GHz: 300Mbps). Adopted the integrated dual-band technology, combining 2.4GHz and 5GHz signals under one WiFi name. The faster band would be allocated to your devices automatically by our dynamic optimization system. Meanwhile, featured with 4*5dBi high-gain antennas and equipped with a 28nm high performance CPU, it brings a better internet experience. ZC-R540 supports IPv6 protocol, it can reduce the data transmission time and minimize the lag.





AC1200 Dual Band WiFi Router
Designed for Medium-sized Apartment

4 Ports AC1200 MU MIMO WiFi Mesh Routers Dual Band 128MB ZIKUN ZC-R540 0



Hardware
Chipset EN7561+MT7592N+MT7513BEN
CPU Frequency 900MHz Dual-core
Flash 128MB
RAM 128MB

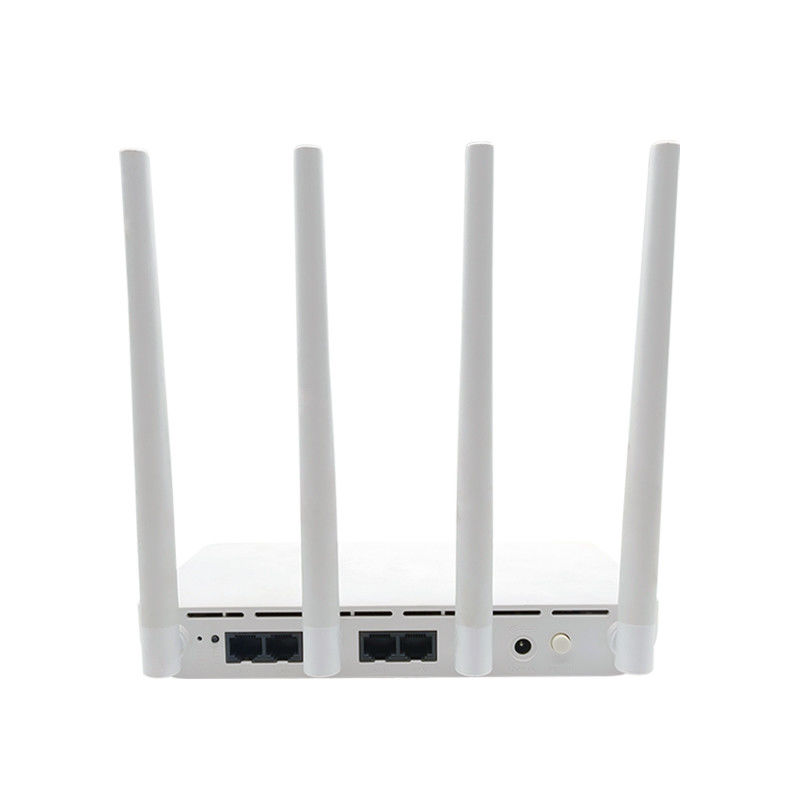

Device Interface 3x RJ45 10M/100M/1000M LAN
1x RJ45 10M/100M/1000M WAN
1xReset button + 1xWPS/MESH button
1xPower Jack
WiFi Antenna 4x 5dBi External Antenna
LED 1xPower/WAN/LAN
WIRELESS FEATURES
Wireless Standards 2.4G:IEEE802.11 b/g/n
5G:IEEE802.11 n/ac
Frequency 2.4G:2T2R MIMO
5G:4T4R MU-MIMO
Transmission Rate 2.4G:Up to 300Mbps
5G:Up to 867Mbps
Wireless Security 64/128-bit WEP, WPA / WPA2, WPA-PSK/ WPA2-PSK encryption

Reception Sensitivity



5G:

11a 54M:-70dBm

11ac VHT20 MCS8:-64dBm

11ac VHT40 MCS9:-59dBm

11ac VHT80 MCS9:-56dBm

2.4G:

11a 54M:-70dBm

11ac VHT20 MCS8:-64dBm

11ac VHT40 MCS9:-59dBm

11ac VHT80 MCS9:-56dBm

Transmit Power <20dBm(2.4GHz)
<23dBm(5GHz)
Modulation OFDM = BPSK,QPSK,16-QAM,64-QAM,256QAM
DSSS = DBPSK,DQPSK,CCK
SOFTWARE FEATURES
Mesh Functions Support mesh networking
Routing Functions

Support Gateway,Bridge,Repeater(Client+AP)

Support UPnP

Support DHCP, Static IP, PPPoE,IPv6 dual stack,NAT

Security Functions

PAP, CHAP, TCP/IP/Port filtering rules,

Port triggering/Forwarding,

Packet and MAC address filtering, access control, SSH



Management

Web-based management,

Configuration backup and restoration.

Software upgrade via HTTP, TFTP server, or FTP server.

QoS WMM
Environment Requirement
Dimensions 200x122.5x29.7 mm
Operating Temperature 0°C~40°C
Storage Temperature -20°C ~ 60°C
Power Supply 12V/1A
Operating Humidity 5%~95% (non-condensing)
