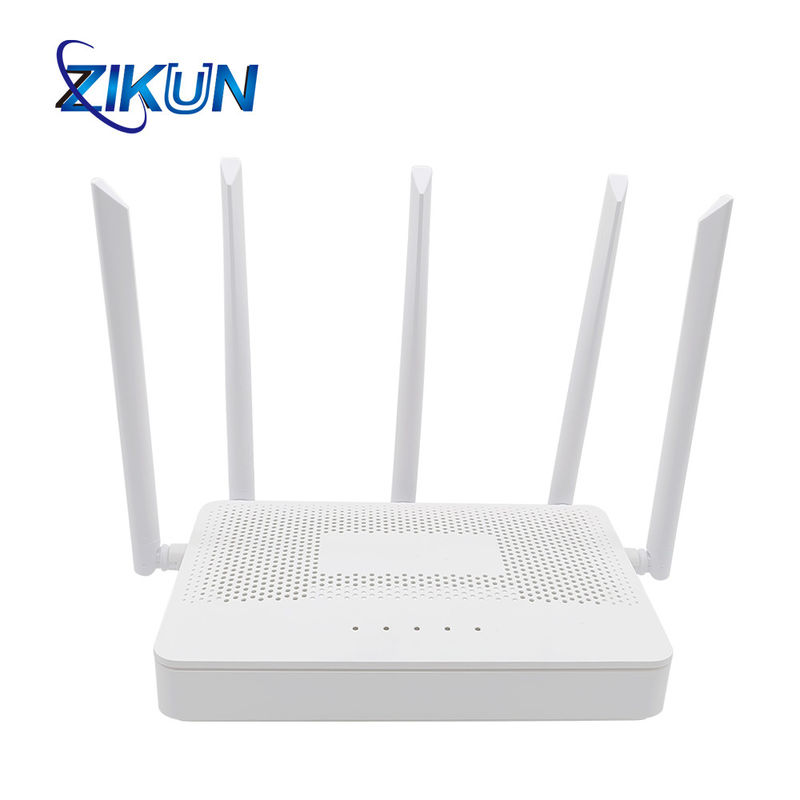

AX3000 Wifi6 Smart Gigabit Mesh Wifi Router ZIKUN ZC-R560 FTTx Solutions
Product Description
The ZC-R560 Dual Band 802.11ac wireless router devices ZC-R560 delivers high performance wireless connectivity for Small Office and Home deployments and support dual band concurrent operation at 2.4GHz and 5GHz with combined throughput of 1.2Gbps(576Mbps at 2.4GHz and 2400Mbps at 5GHz).
ZC-R560 support Wi-Fi EasyMesh that brings a standards-based approach to Wi-Fi networks that utilize multiple access points (APs), combining the benefits of easy to use, self-adapting Wi-Fi with greater flexibility in device choice that comes with interoperable Wi-Fi EasyMesh devices.
Built-in PA & LNA in the Chip
PA: Improve wireless signal transmission to bring a stronger coverage LNA: Reduce wireless interference to bring a stable signal
Features & Specification
Wireless Protocol |
2.4GHz IEEE 802.11 b/g/n 2T2R 5GHz IEEE 802.11a/n/ac/ax 2T3R |
Wireless Transfer Rate |
2.4G=576Mbps 5G=2400Mbps |
Antennas |
2*2.4G 5dBi fixed Antenna built-in 3*5G 5dBi fixed Antenna built-in |
External Interface |
1*WAN 10/100/1000Mbps 3*LAN 10/100/1000Mbps 1*DC JACK |
Buttons |
1*WPS 1*Reset 1*Power |
Indicator Lights |
Power, WAN, LAN, WIFI, WPS |
Power Dissipation |
<18W |
Size | L255*W165*H39 |
Temperature |
Operating Temperature: -10°C ~ +45°C Storage Temperature: -40°C ~ +70°C Storage Humidity: 5% ~ 95% Atmosphere Pressure: 86kPa ~ 106kPa |
WLAN |
Support 802.11 a/b/g/n/ac/ax protocol standard 20/40/80 /160 MHz Bandwidth Adaptation of channel MSSID + Guest network WPS: PBC/PIN WPA/WPA2/WPA3 |
Network protocols and features |
Connection mode: PPPoE/DHCP/Static IP IPv4, IPv6, IPv4/IPv6 DHCP v4/v6 Static routes (v4/v6), RIP NAT/ALG/DMZ/Virtual server ARP/ICMP/DNS Proxy NTP VLAN |
Management Function |
Web UI TR069 Online and local software upgrades Fault diagnosis |
Next Generation Firewall |
SBuilt-in firewall DoS, ARP Attack/Port scanning MAC/Port filtering |
QoS |
802.11e WMM Traffic classification Port-Based/VLAN/ IP IP flow control |
