4 Ports GE LAN AX3000 Wifi6 Mesh Routers MU-MIMO Interface For Home
ZC-R560 Support the latest IEEE 802.11AX protocol standard, MU-MIMO and BEamforming functions can maximize the multi-user convergence High speed and high quality network service requirements when using. Support up to AX3000 WIFI rate, can easily support HD Video, online games and other network applications.
In addition to supporting high-rate WIFI6 functions, it also supports firewall, QoS, remote management and other functions for families and small and medium-sized enterprises . Users provide stable services.
Features & Specification
|
Wireless Protocol |
2.4GHz IEEE 802.11 b/g/n 2T2R 5GHz IEEE 802.11a/n/ac/ax 2T3R |
| Wireless Transfer Rate |
2.4G=576Mbps 5G=2400Mbps |
| Antennas |
2*2.4G 5dBi fixed Antenna built-in 3*5G 5dBi fixed Antenna built-in |
|
External Interface |

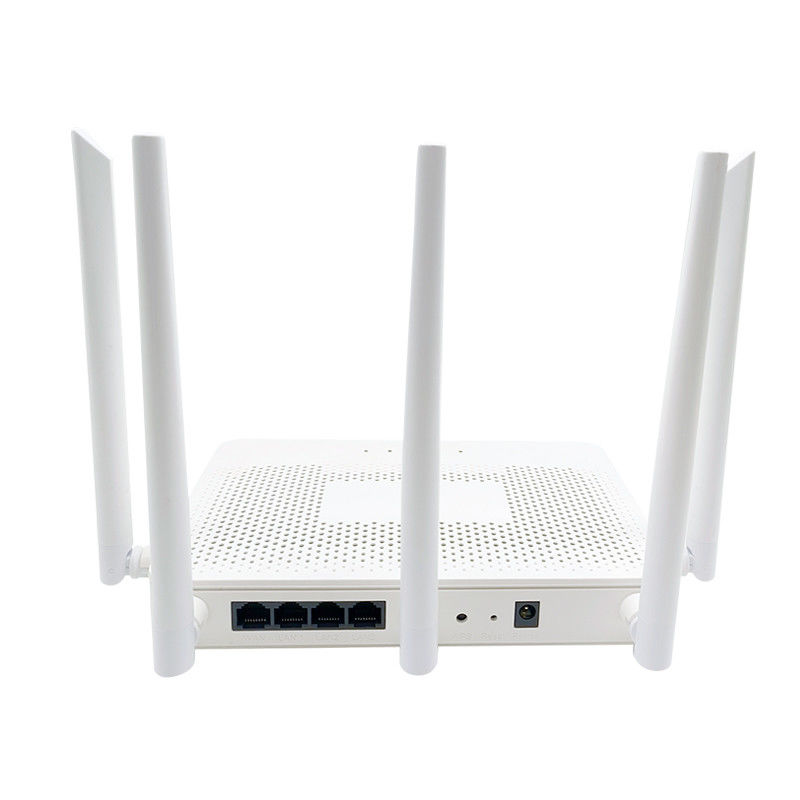

1*WAN 10/100/1000Mbps 3*LAN 10/100/1000Mbps 1*DC JACK |
|
Buttons |
1*WPS 1*Reset 1*Power |
|
Indicator Lights |
Power, WAN, LAN, WIFI, WPS |
|
Power Dissipation |
<18W |
| Size | L255*W165*H39 |
|
Temperature |
Operating Temperature: -10°C ~ +45°C Storage Temperature: -40°C ~ +70°C Storage Humidity: 5% ~ 95% Atmosphere Pressure: 86kPa ~ 106kPa |
| WLAN |
Support 802.11 a/b/g/n/ac/ax protocol standard 20/40/80 /160 MHz Bandwidth Adaptation of channel MSSID + Guest network WPS: PBC/PIN WPA/WPA2/WPA3 |
| Network protocols and features |
Connection mode: PPPoE/DHCP/Static IP IPv4, IPv6, IPv4/IPv6 DHCP v4/v6 Static routes (v4/v6), RIP NAT/ALG/DMZ/Virtual server ARP/ICMP/DNS Proxy NTP VLAN |
|
Management Function |
Web UI TR069 Online and local software upgrades Fault diagnosis |
|
Next Generation Firewall |
SBuilt-in firewall DoS, ARP Attack/Port scanning MAC/Port filtering |
| QoS |
802.11e WMM Traffic classification Port-Based/VLAN/ IP IP flow control |
Our products are sold all over the world, you can rest assured.
