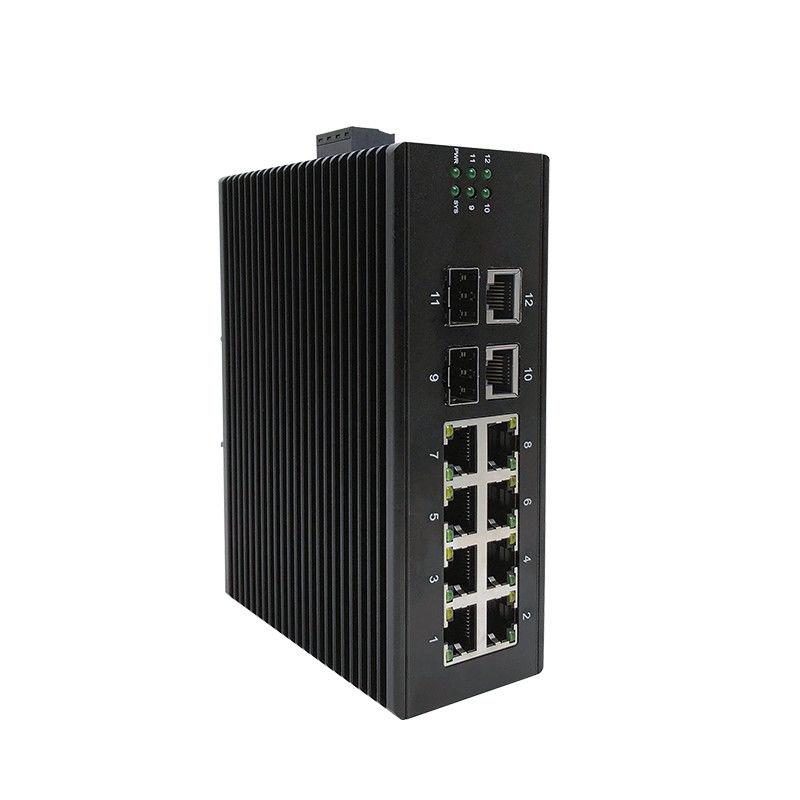

ZIKUN Gigabit Managed Ethernet Industrial Poe Switch 12 Port Din Rail For Ip Camera Dual Dc Input
ZC-S2012G is an industrial grade gigabit PoE switch designed for industrial environment. 10 Gigabit adaptive Ethernet interfaces are provided. It provides rich and intelligent management function,supports management via Web interface. There are remote PoE power restart function. when the load equipment fails and crashes, the equipment can be restarted through remote operation (Web-UI).
Model Feature
Model | ZC-S2006G | ZC-S2010TG | ZC-S2010G | ZC-S2012G |
Gigabit optical port(GE SFP) | 2 | 1 | 2 | 2 |
Gigabit electrical por(GE RJ-45) | 4 | 9 | 8 | 10 |
Input voltage DC(V) | 12-58 | 12-58 | 12-58 | 12-58 |
Power consumption(W) | <6 | <6 | <6 | <6 |
Weight(kg) | 0.5 | 0.5 | 0.5 | 0.58 |
Dimensions(mm) | 143X105X53 |
Specifications
Provider Mode Ports | |

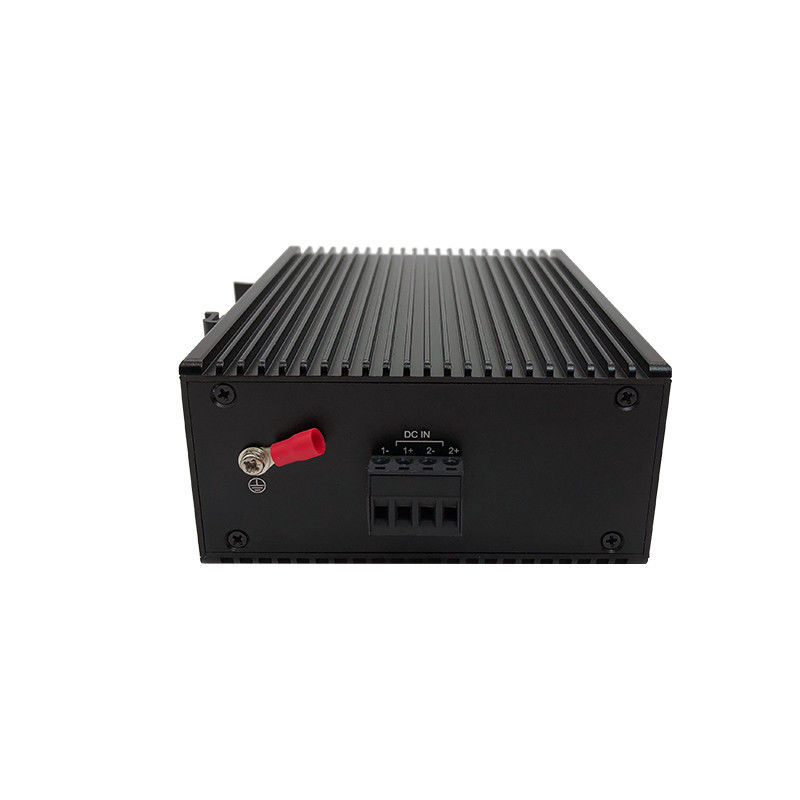

Power interface | Phoenix terminal |
LED Indicators | PWR,SYS,Optical port indication |
Cable type&Transmission distance | |
Twisted-pair | 0-100m(CAT5e,CAT6) |
Monomode optical fiber | 20/40/60/80/100KM |
Multimode optical fiber | 550m |
Electrical Specifications | |
input voltage | DC12-58V |
Layer 2 Switching | |
Switching capacity | 12G |
Packet forwarding rate |
14.88Mpps |
MAC address table | 4K |
Buffer | 1M |
Forwarding delay | <10us |
MDX/MIDX | Support |
Flow control | Support |
Jumbo Frame | Support 9.6Kbytes |
Environment Condition | |
Operating temperature | -40℃~+85℃ |
Storage/transport temperature | -40℃~+85℃ |
Relative humidity | 5%~95% non-condensing |
Thermal methods | Fanless design, natural heat dissipation |
Mechanical Dimensions | |

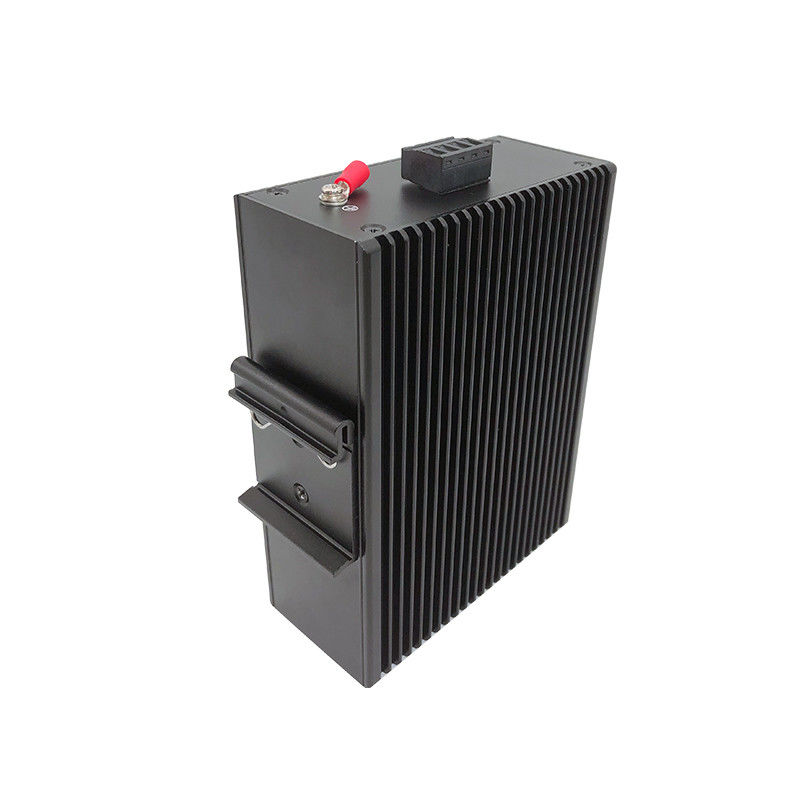

Installation Method | Clamp rail installation, hanging ear installation |
EMC&INGRESS PROTECTION | |
IP Level | IP40 |
Surge protection of Power | IEC 61000-4-5 Level X(6KV/4KV)(8/20us) |
Surge protection of Ethernet port | IEC 61000-4-5 Level 4(4KV/4KV)(10/700us) |
ESD | IEC 61000-4-2 Level 4 (8K/15K) |
Authentication | |
Authentication | Ministry of Public Security,CCC/CE/FCC/RoHS |
Accessories | |
Accessories | Equipment, terminals, certificate, manual, power adapter (optional) |
