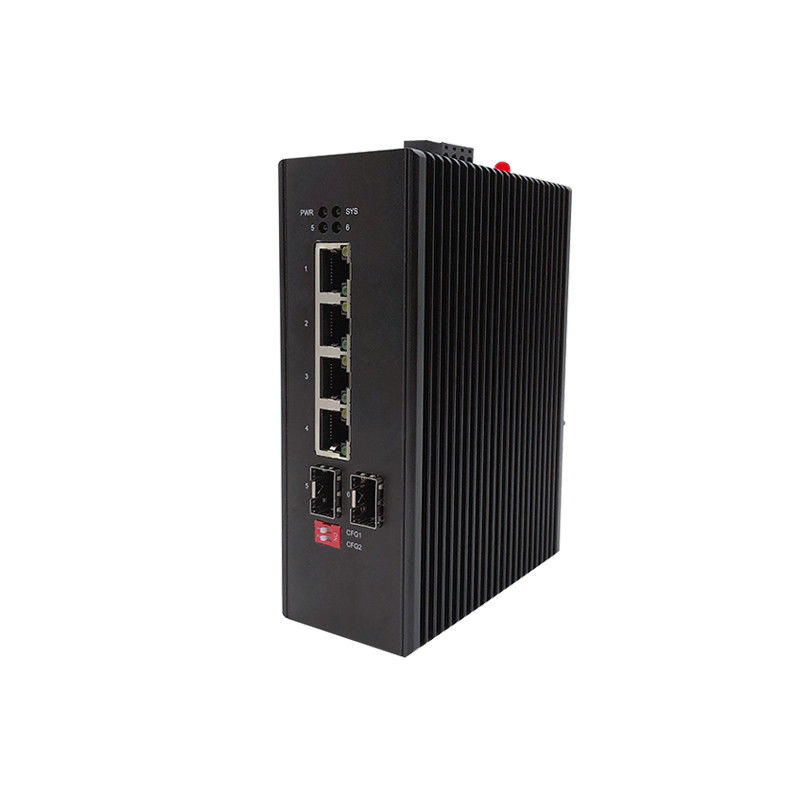

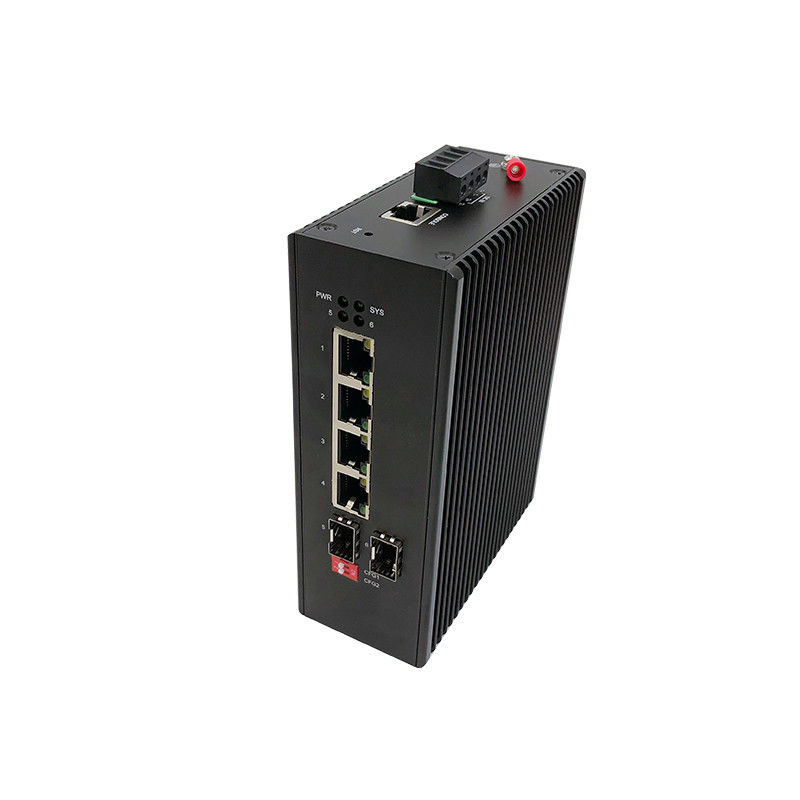

ZIKUN ZC-S2006MG 6 ports Managed Industrial Ethernet Switch with 2 SFP Gigabit optical port
Product OverView
ZC-S2006MG Managed Industrial Ethernet Switch with 2xGigabit optical port(GE SFP) ,4xGigabit electrical port(GE RJ-45). It can transfer date for industrial equipment such as weather-proof IP cameras with windshield wiper and heater, high-performance AP and industrial IP telephone.
This Ethernet switch is special for the harsh outdoor situations. In addition, it is highly flexible, the transmission distance of the SFP fiber port can be up to 120km, and with high resistance to electromagnetic interference.
Model Feature
Model | ZC-S2006MG | ZC-S2010MG |
Gigabit optical port(GE SFP) | 2 | 2 |
Gigabit electrical port(GE RJ-45) | 4 | 8 |
RS232 Manage Port | ● | ● |
Input voltage DC(V) | 48-54 | 48-54 |
Power consumption)(W) | <7.5W | <9W |
PoE Port | 1-4 | 1-8 |
Max PoE consumption)(W) | 120 | 240 |
Weight(kg) | 0.65 | 0.8 |
Dimensions(mm) | 143X105X53 | 160X120X53 |
Features
Managed switch for remote web control
Built-in 6x 10/100M Ethernet ports, supporting Auto MDI/MDI-X
Standard industrial design;
Suitable for harsh industrial environment;
4x 10/100/1000M TP/SFP combo port, and 2 gigabit SFP optical fiber port, supports high-bandwidth and long-distance transmission;
Wide range of working temperature;
Aluminum shell design;
No fan, no ventilation holes;
The transmission distance of the SFP fiber port can be up to 120km,and with high resistance to electromagnetic interference;
Superior performance, successfully used in industrial field;
Installation Method: DIN rail installation
Specifications
Provider Mode Ports | |
Management Port | Support console |
Power interface | Phoenix terminal, dual power supply redundancy (redundant power) |
LED Indicators | Power,Status,Optical port indication |
Cable type&Transmission distance | |
Twisted-pair | 0-100m(CAT5e,CAT6) |
Single mode fiber | 20/40/60/80/100KM |
Multimode optical fibre | 550m |
Network Topology | |
Ring topology | Support |
Star topology | Support |
Bus topology | Support |
Tree Topology | Support |
Hybrid topology | Support |
Electrical Specifications | |
Input voltage |
DC48-54V; |
PoE Support | |
PoE Protocol | 802.3af,802.3at |
PoE Pin Assignment | 1,2+;3,6- |
PoE Management | Support |
Layer 2 Switching | |
Switching capacity | 12G |
Packet forwarding rate | 8.93Mpps |
MAC address table |
Comply with IEEE 802.1q standard; support MAC address automatic learning and aging; |
VLAN Support and Quantity(VLAN) |
Support 4094 VLANs; support port-based VLAN; |
Buffer | S2006MG:1M;S2010MG:2M |
Flow control | Support IEEE802.3x |
Spanning Tree | Support STP,RSTP和MSTP |
ERPS(G.8032) | Support single, tangent, and intersecting rings; support multiple instances |
Port aggregation | Support static aggregation; supports dynamic aggregation (LACP) |
Multicast |
Support IGMP V1 Snooping;Support IGMP V2 Snooping; |
Port Mirroring | Support port-based two-way mirroring |
Storm Control | Support |
Interface Counters | Support |
NTP client | Support |
TFTP Client | Support |
Ping/tracert detection |
Supportping(ipv4);Support ping(ipv6); |
security feature | |
Dot1x |
Support port-based authentication; support MAC-based authentication; |
Management Function | |
Command Line(CLI) | Support |
Management serial port(Console) | Support |
Telnet | Support |
WEB managent | Support |
SNMP | Support SNMPv1/v2c/v3 |
User Management | Support login authentication |
RMON | Support statistics group; support history group; support alarm group; support event group |
IPV4/IPV6 | Support |
System Log | Support |
Configuration File Download/Upload | Support |
Upgrade Firmware | Support |
Environmental conditions | |
Operating temperature | -40℃~+85℃ |
Storage/transport temperature | -40℃~+85℃ |
Relative humidity | 5%~95% non-condensing |
Thermal methods | Fanless design, natural heat dissipation |
Mechanical Dimensions | |
Installation Method | Clamp rail installation, hanging ear installation |
EMC&INGRESS PROTECTION | |
IP Level | IP40 |
Surge protection of Ethernet port | IEC 61000-4-5 Level 4 |
Instantaneous pulse anti-jamming(EFI) | IEC 61000-4-4 Level 4 |
Anti-static interference(ESD) | IEC 61000-4-2 Level 4 |
Authentication | |
Authentication | Ministry of Public Security,CCC/CE/FCC/RoHS |
Accessories | |
Accessories | Equipment, terminals, certificate, manual, power adapter (optional) |
