CATV GEPON ONU 1GE 3FE Wifi WDM XPON ONT Optical Network Terminal

CATV GEPON ONU 1GE 3FE Wifi WDM XPON ONT Optical Network Terminal

  • High Light

    CATV GEPON ONU 1GE

    ,

    Wifi GEPON ONU 1GE

    ,

    XPON ONT Optical Network Terminal

  • Type
    XPON ONU
  • Antena Gain
    5 DBi
  • User Network Interface (UNI )
    1GE+3FE+1CATV+WIFI
  • WLAN
    2 × 2 MIMO
  • Management
    OMCI/OAM/TR069/Web UI
  • Antenna
    Two External Antenna
  • WDM
    1490/ 1310nm+ 1550nm
  • Brand Name
    ZIKUN
  • Model Number
    ZC-500WT
  • Minimum Order Quantity
    1
  • Price
    Negotiable
  • Delivery Time
    5-15 work days
  • Payment Terms
    T/T

CATV GEPON ONU 1GE 3FE Wifi WDM XPON ONT Optical Network Terminal

ZIKUN GPON EPON ONU ZC-500WT With 1GE 3FE Wifi WDM CATV XPON ONT

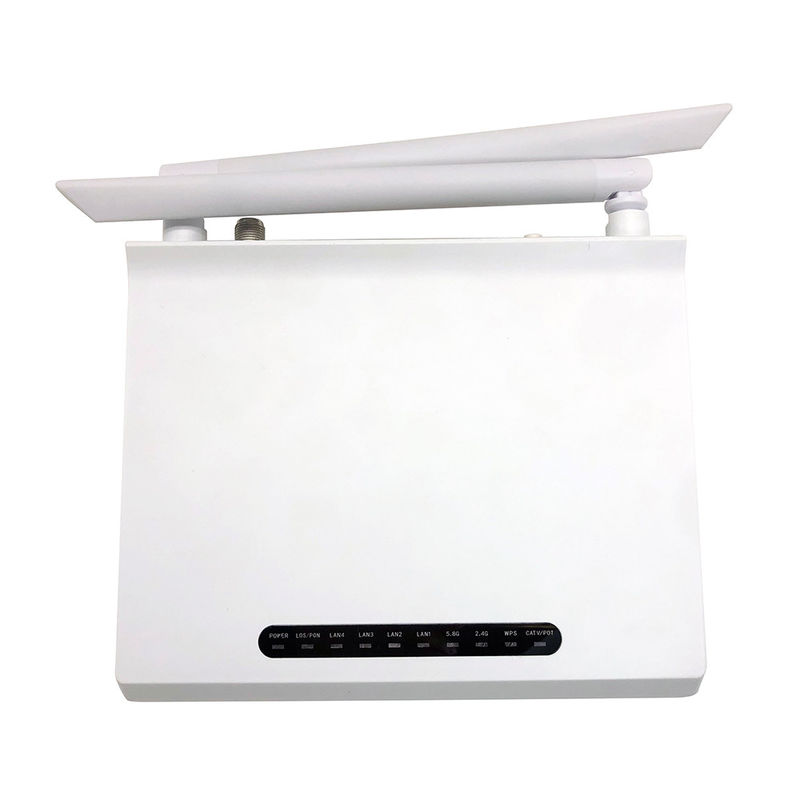

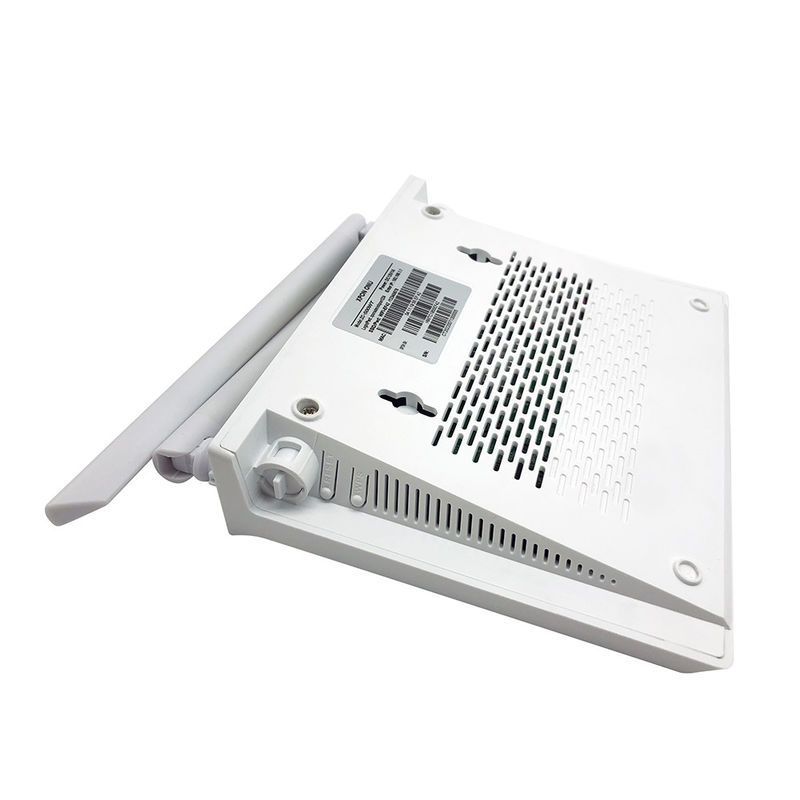

ZC-500WT is a dual-mode(XPON) optical network terminal (ONT) supports automatic switching between GPON and EPON modes, is designed for the fiber to the home (FTTH) scenarios. It can provide serivces for Catv Video,IPTV Video and highspeed internet access.



CATV GEPON ONU 1GE 3FE Wifi WDM XPON ONT Optical Network Terminal 0



ZC-500WT complies with the ITU-T G.984/G.988 standard and IEEE802.3ah Standard, It has 10Mbps/100Mbps/1000Mbps adaptive GE interfaces, complying with IEEE802.3-2005 standards. The device offers 1* GE+3FE,1CATV RF and 2*2 11n wifi.




GPON interface (NNI ):1 x PON interface+WDM+AGC
Optical port
GPON/EPON mode adaptive
ITU-T G.984/G.988 GPON standards,Support for backward compatibility with IEEE 802.3ah EPON
Single mode fiber
Optical connector
SC/APC
Receiving Sensitivity
-28dBm;CATV Optical Receiver(1550nm):-18dBm
Overload optical power
-8 dBm;CATV Optical Receiver(1550nm):+2dBm
Transmitting Optical Power
0.5~4dBm
Transmit rate
GPON:2.488Gbps downstream; 1.244Gbps upstream
EPON:1.25Gbps downstream;1.25Gbps upstream
Wavelength
Receiving(DOWN):1490nm;Transmitting(UP):1310nm
Third party wavelength(CATV Optical Receiver):1550nm
WDM
1490/1310nm+1550nm
AGC
+2~-7dBm/-4~-13dBm/-5~-14dBm
User Network Interface (UNI ):1GE+3FE+1CATV+WIFI


Ethernet Port
Ethernet port-based VLAN tags and tag removal
VLAN transparent and aggregation
MAC address learning
Auto-adaptive 10 Mbit/s, 100 Mbit/s or 1000 Mbit/s



WLAN
IEEE 802.11 b/g/n
2 × 2 MIMO
Antenna gain: 5 dBi,two external antenna
Air interface rate:300 Mbit/s
Multiple SSIDs




CATV Port
CATV Interfce:RF output,-5 Male F-Type Connector
RF frequency:47MHz~1000MHz
RF output lever:≥ 80dBuV(-7dBm optical input)
Optical reflection loss: ≥45dB
MER: ≥32dB(-14dBm optical input), >35(-10dBm)
RF impedance:75Ω
Product Function





GPON
ITU-T G.984.1-4
ITU-T G.988
32 TCONTs /256GEM ports
8 Egress queues per TCONT at least
VLAN or VLAN plus priority gem mapping mode
Performance monitoring: eth/Gem port
Dying gasp



Layer 2 Features
MAC learning (SVL)/aging
Support max frame length to 1518 bytes
VLAN tagging for untagged packets
Support VLAN 1-4094
VLAN transparent/translation





Layer 3 Features
PPPoE/Static IP/DHCP/Static IP/Bridge
NAT/NAPT
Port forwarding
ALG, UPnP
DDNS/DNS server/DNS client
IPv6/IPv4 dual stack,and DS-Lite
Static/Default routes
Multiple services on one WAN port
RIPv2 with passive mode

Multicast
IGMP v2 (RFC 2236) and IGMP v3 (RFC 3376)
IGMP snooping and IGMP Proxy
MLD v1/v2



Qos
Support 8 Queues with Strict Priority
Ethernet port rate limitation
802.1ppriority
SP/WRR/SP+WRR
Service flow classification

Security
Firewall
MAC/Port/URL Filter


Management
OMCI/OAM/TR069
Web UI(Http by LAN-Side and WAN-Side)
Telnet(Telnet by LAN-Side and WAN-Side)
Manage the CATV RF Port in OLT(Disablel/Enable the CATV RF Port)
SSH management with CLI commands
Physical Performance
Weight
About 400g
Working temperature
0°C ~ 45°C
Working humidity
5% RH to 95% RH (non-condensing)
Power adapter input
100–240 V AC, 50 / 60 Hz
System power supply
12V DC, 1 A
Power consumption
<6W
System Configuration
Main Chip
ZTE ZXIC ZX279127@800Mhz
RAM
256MB
Flash
256MB
WiFi Chip
MTK MT7603
