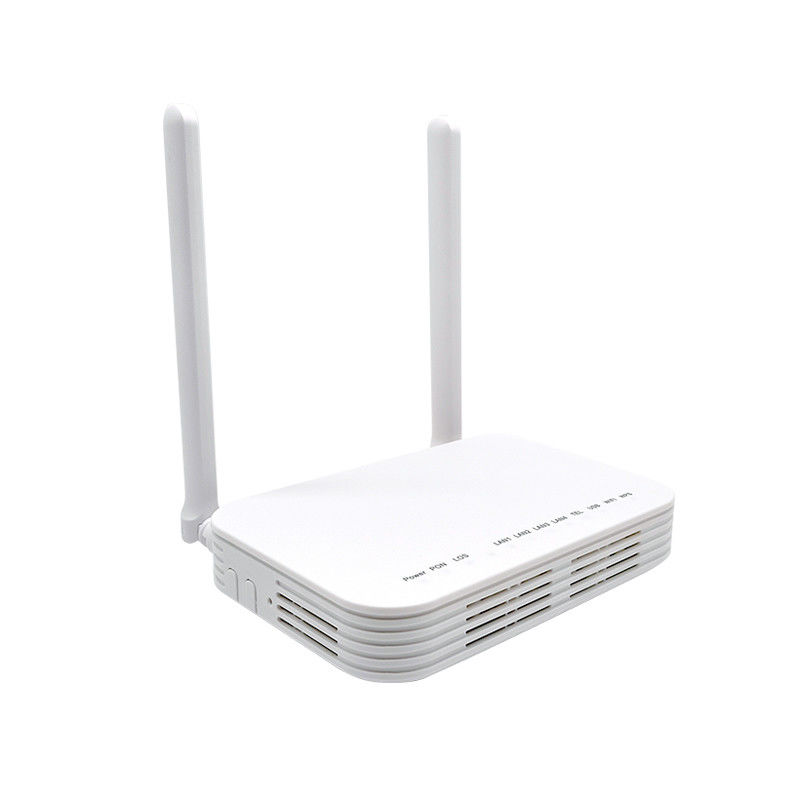

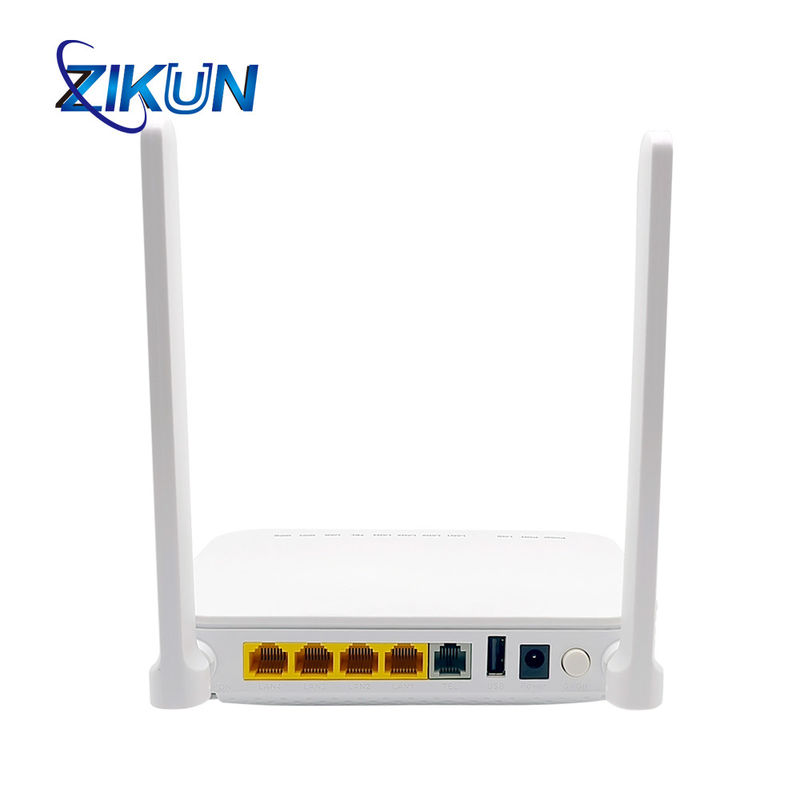

ZIKUN GPON ONU 1GE 3FE 1USB 1POTS WiFi 802.11AC ZC-520 XPON ONT
Product Description
ZC-520 is based on mature and stable, cost-effective EPON/GPON technology, high reliability, easy management, configuration flexibility and good quality of service (QoS) guarantees to meet the technical performance of IEEE802.3ah and ITU-TG.984.x , China Telecom EPON/GPON equipment technical requirements and other specifications.
ZC-520 GPON 1GE+3FE+1USB+1POTS+WIFI ONU meets telecom operators FTTO (office), FTTD (Desk) ,FTTH(Home) broadband speed, SOHO broadband access, video surveillance and other requirements to design an GPON Gigabit Ethernet products.
GPON 1GE+3FE+1USB+1POTS+WiFi
Key Features
Specifications
Technical item | 1GE+3FE+1POTS+WiFi | |
PON |
1 G/EPON port(EPON PX20+ and GPON Class B+) Receiving sensitivity: ≤-28dBm Transmitting optical power: 0~+4dBm Transmission distance: 20KM |
|
Wavelength | Tx1310nm,Rx 1490nm | |
Optical | SC/UPC connector | |
LAN |
Auto-adaptive 10 Mbit/s, 100 Mbit/s or 1000 Mbit/s,MAC address learning |
|
POTS | . SIP/ H.248 . Call waiting, Inconditional Call Forward, Call Forward if Busy,Call Forward if no reply and Three-party calls. . G.711A/U, G.729 and G.722 encoding/decoding . T.30/T.38/G.711 fax mode . SDP protocol (RFC 2327 and RFC 4566) . DTMF |
|
WiFi |
. IEEE 802.11 b/g/n (2.4G) |
|
USB port |
. USB2.0 ,USB backup . FTP-based network storage . File/Print sharing based on SAMBA . UPnP |
Order Information
Product model | Product specification | Chipset | SDRAM Memory |
ZC-520GPON | 1GE+3FE+1POTS+WIFI+1USB | Hisilicon | 64MB |
