Dual Mode FTTH GPON EPON ONU 1GE CATV ONT XPON ONU SC / APC Connector

Dual Mode FTTH GPON EPON ONU 1GE CATV ONT XPON ONU SC / APC Connector

  • High Light

    1GE FTTH GPON EPON ONU

    ,

    CATV FTTH GPON EPON ONU

  • GPON Interface (NNI)
    1 X GPON Interface+WDM
  • Optical Connector
    SC/APC
  • User Network Interface (UNI)
    1GE+1CATV
  • Weight
    About 300g
  • Manage
    OMCI/OAM/Web UI/Telnet
  • Layer 3 Features
    IPv4/IPv6 Dual Stack
  • Brand Name
    ZIKUN
  • Model Number
    ZC-501T
  • Minimum Order Quantity
    1
  • Price
    15$
  • Delivery Time
    5-15 work days
  • Payment Terms
    T/T

Dual Mode FTTH GPON EPON ONU 1GE CATV ONT XPON ONU SC / APC Connector

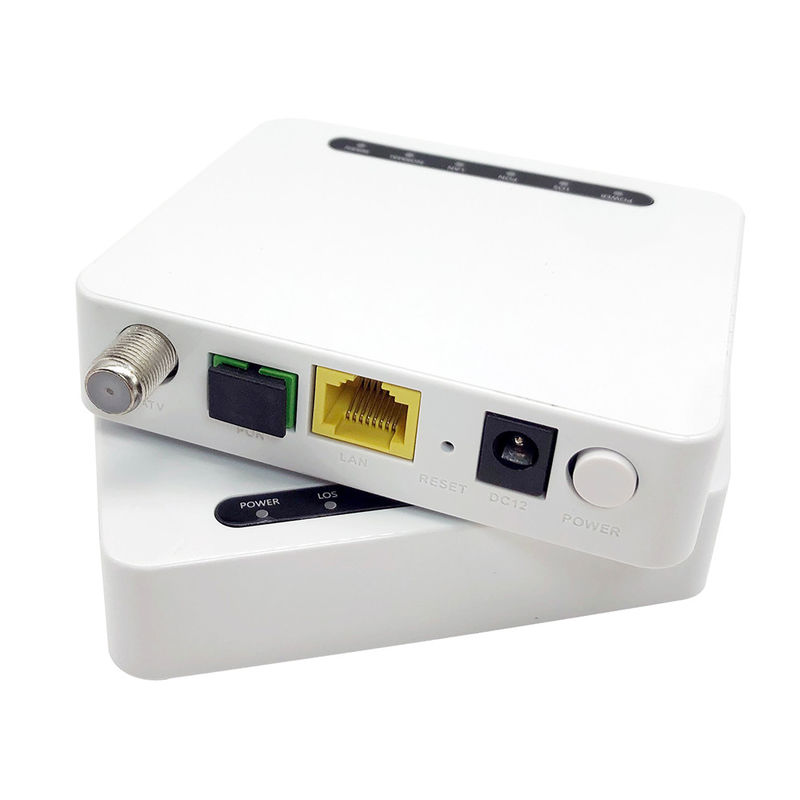

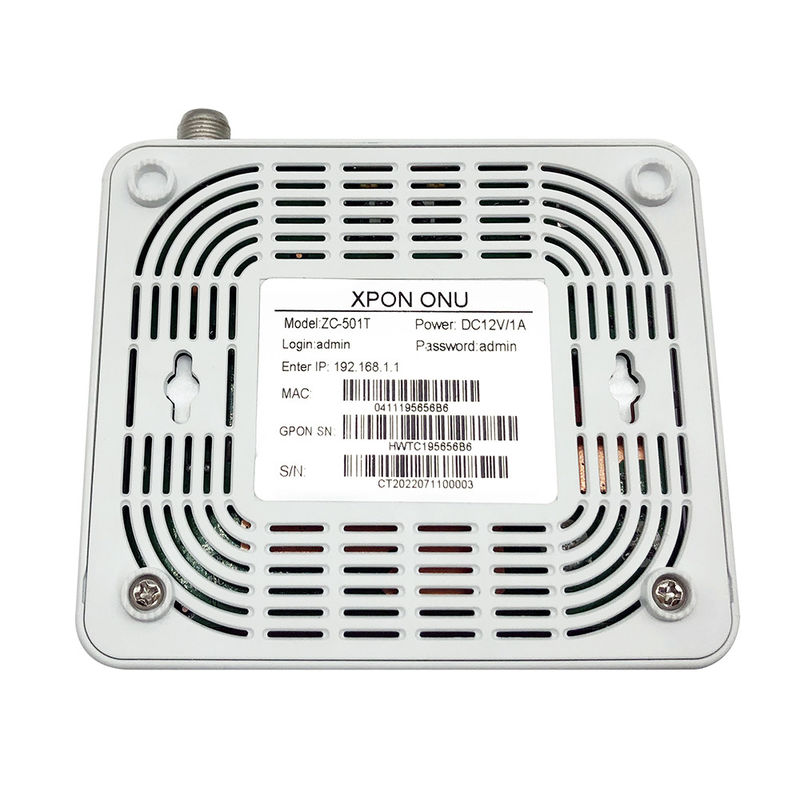

ZC-501T 1GE+CATV XPON ONT



ZC-501T is a DUAL MODE auto-negotiation G/EPON(XPON) Optical Network Terminal designed for FTTH
scenario. . It provides subscribers rich,colorful, individualized, convenient and comfortable triple-play services
including video (IPTV/CATV) and high speed internet access.




Main Features

• Auto adaptive EPON & GPON.
• Provides a CATV port for instant viewing of live TV
• Gigabit LAN port is provided to ensure ultra-high speed data transmission.
• Upstream rate up to 1.25Gbps, downstream rate up to 2.5Gbps and transmission distance up to 20Km.
• Supports both IPV6 and IPV4/IPV6 dual stacks
• Extensive compatibility with lots of OLT brands worldwide.
• Supports for OMCI and TR069 remote management.




Dual Mode FTTH GPON EPON ONU 1GE CATV ONT XPON ONU SC / APC Connector 0 GPON interface (NNI) :1 x GPON interface+WDM
Optical port GPON Port:ITU-T G.984/G.988 GPON standards ,Flexible mapping between GEM Port
Optical connector SC/APC
Receiving Sensitivity -28dBm;CATV Optical Receiver (1550nm) :- 18dBm
Overload optical power -8 dBm;CATV Optical Receiver (1550nm) :+2dBm
Transmitting Optical Power 0~4dBm
Transmit rate 2.488Gbps downstream; 1.244Gbps upstream
Wavelength

Receiving (DOWN) :1490nm;Transmitting (UP) :1310nm

Third party wavelength (CATV Optical Receiver) :1550nm

Authentication

GPON:SN /Password/LOID/LOID+LOID passowrd authentication

EPON:MAC/LOID/LOID+LOID passowrd authentication

WDM 1490/ 1310nm+ 1550nm
AGC range +2~-7dBm/-4~- 13dBm/-5~- 14dBm
Dual Mode FTTH GPON EPON ONU 1GE CATV ONT XPON ONU SC / APC Connector 1 User Network Interface (UNI) :1GE+1CATV



Ethernet Port

• Ethernet port-based VLAN tags and tag removal
• VLAN transparent transmission
• MAC address learning
• Auto-adaptive 10 Mbit/s, 100 Mbit/s or 1000 Mbit/s





CATV Port

• CATV Interfce:RF output ,-5 Male F-Type Connector
• RF frequency:47MHz~1000MHz
• RF output impedance:75 Ω
• RF output lever: ≥ 82dBuV ( -7dBm optical input)
• Optical reflection loss: ≥45dB
• MER: ≥32dB(- 14dBm optical input), >35dB(- 10dBm)
Dual Mode FTTH GPON EPON ONU 1GE CATV ONT XPON ONU SC / APC Connector 2 Product Function




Layer 3 Features

• PPPoE/Static IP/DHCP/Brige
• NAT , Firewall
• Port forwarding
• IPv4/IPv6 dual stack
• Static/Default routes
Multicast • IGMPv2, IGMPv3, MLDv1, MLDv2, IGMP snooping/proxy
Dual Mode FTTH GPON EPON ONU 1GE CATV ONT XPON ONU SC / APC Connector 3os • Support Flow & Storm Control , Loop Detection
Manage •OMCI/OAM/Web UI/Telnet
•Manage the CATV RF Port in OLT (Disablel/Enable the CATV RF Port)
Dual Mode FTTH GPON EPON ONU 1GE CATV ONT XPON ONU SC / APC Connector 4 Physical Performance
Weight About 300g
Working temperature -40°C ~ 60°C
Working humidity 5% RH to 95% RH (non-condensing)
Power adapter input 100–240 V AC, 50 / 60 Hz
System power supply 12V DC, 1 A
Power consumption <3W
Dual Mode FTTH GPON EPON ONU 1GE CATV ONT XPON ONU SC / APC Connector 5 System Configuration RTL9601D man chip+32MB RAM+8MB flash
