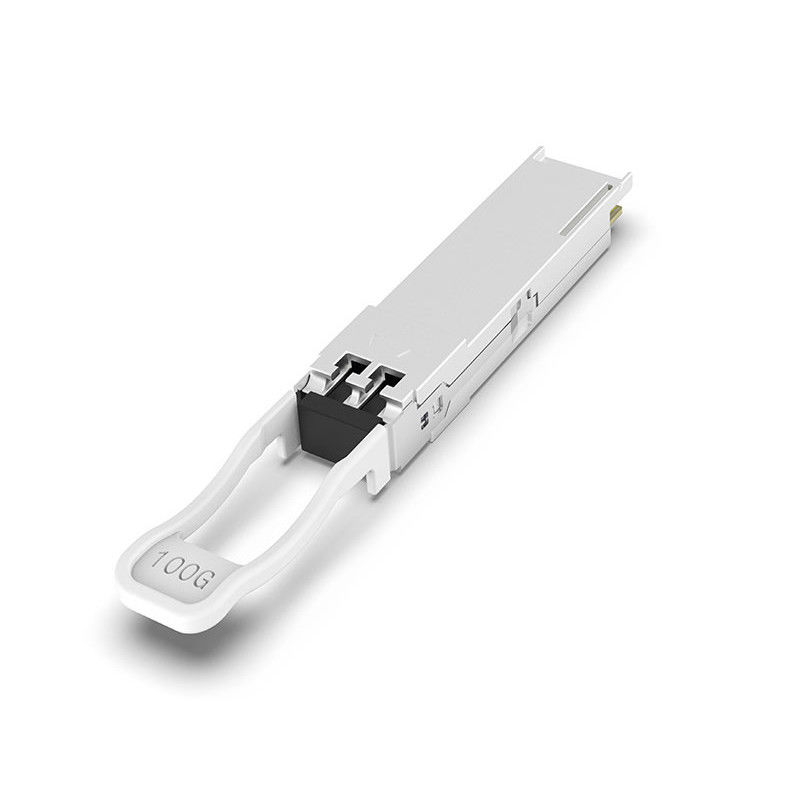

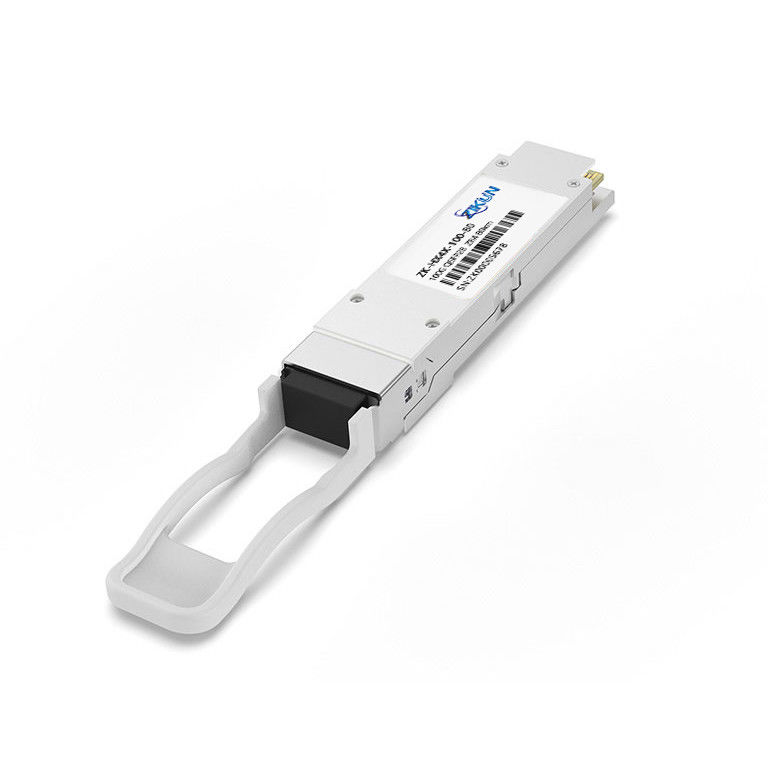

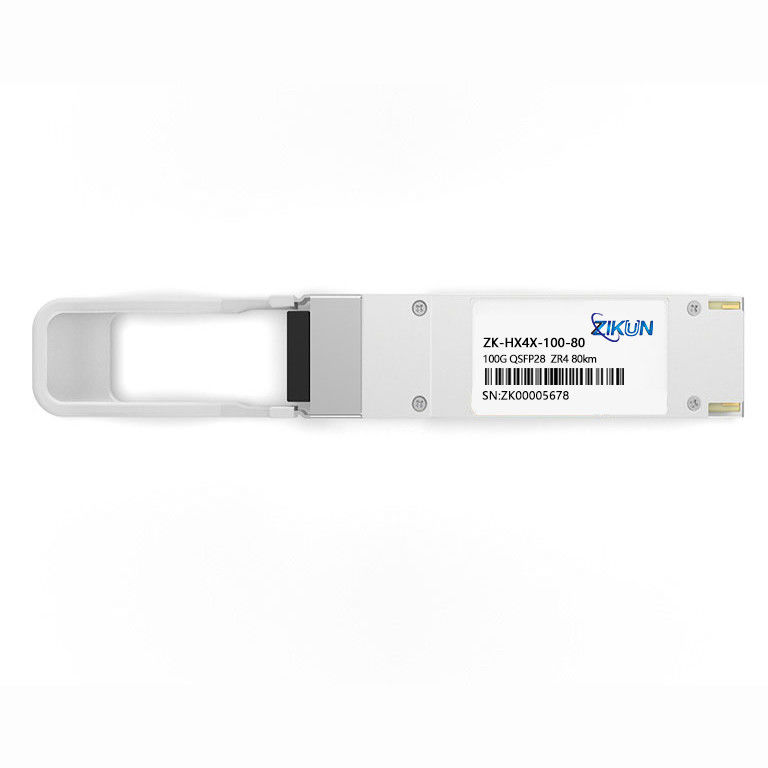

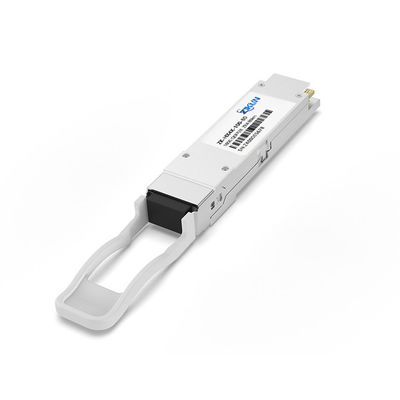

SFP Module 100G QSFP28 ZR4 80km Optical Fiber Optic Transceiver
Product Features
⚫ Compliant with 100GBASE-ZR4
⚫ Support line rates from 103.125 Gb/s to 111.81 Gb/s OTU4
⚫ LAN WDM EML laser and PIN receiver with SOA
⚫ Up to 80km reach for G.652 SMF

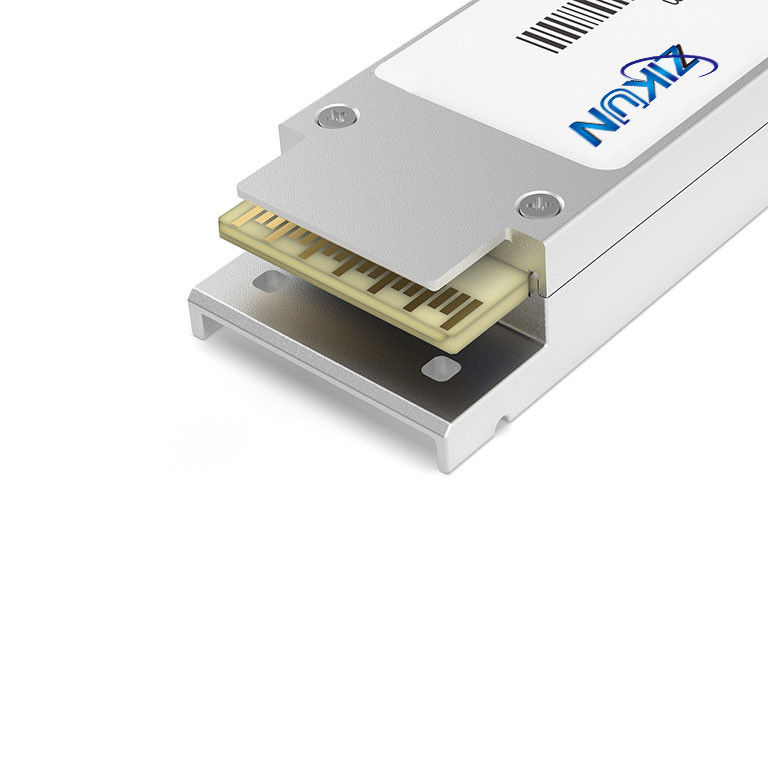

⚫ Hot pluggable 38 pin electrical interface
⚫ QSFP28 MSA compliant
⚫ Duplex LC optical receptacle
⚫ RoHS-10 compliant and lead-free
⚫ Single +3.3V power supply
⚫ Maximum power consumption 6.5W
⚫ All-metal housing for superior EMI performance
⚫ Case operating temperature : 0°C to +70°C/ -40°C to +85°C
Ordering Information
|
Product Number |
Data Rate (Gb/s) |
Wavelength (nm) |
Reach (km) |
LD |
Tx Power (dBm) |
PD |
Rx Sens (dBm) |
Temperature (C) |
|
ZK-HX4X-100-80C |
100 |
1295.56, 1300.05, 1304.58, 1309.14 |
80 |
LAN WDM TOSA |
2.0 ~4.5 |
SOA+PIN |
< -24 |
0~70 |
|
ZK-HX4X-100-80I |
100 |
80 |
2.0 ~4.5 |
SOA+PIN |
< -24 |
-40~85 |
