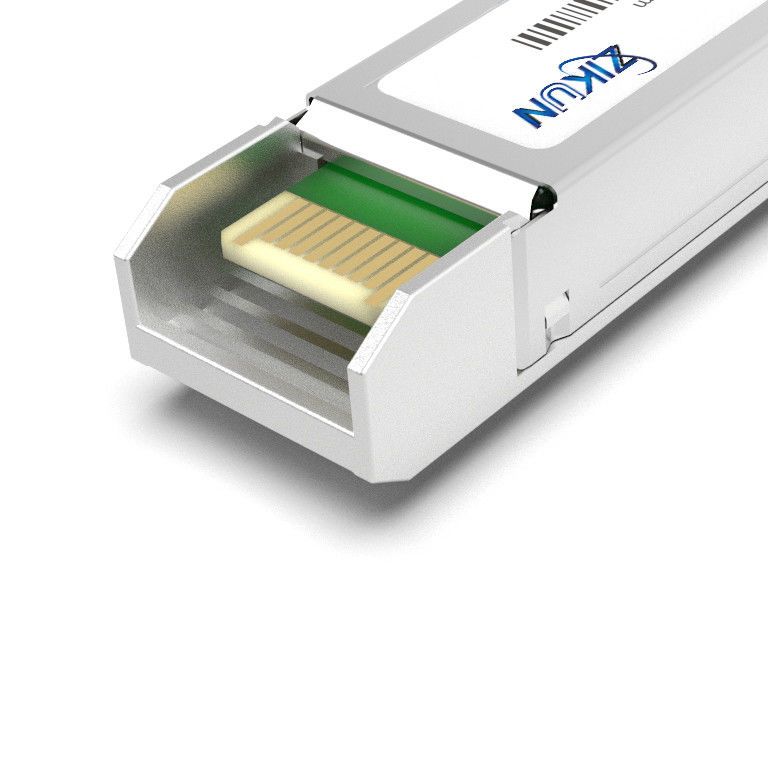

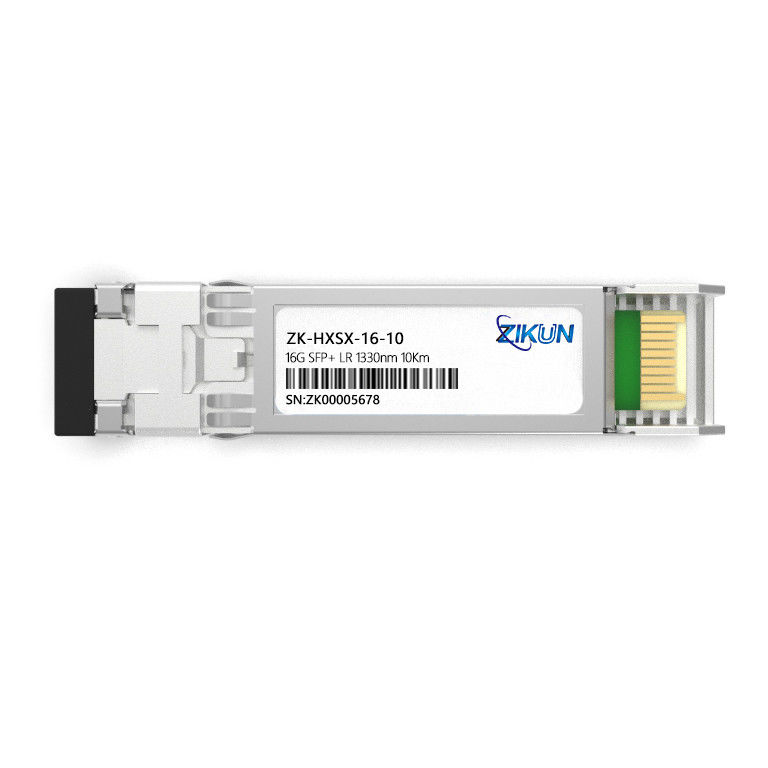

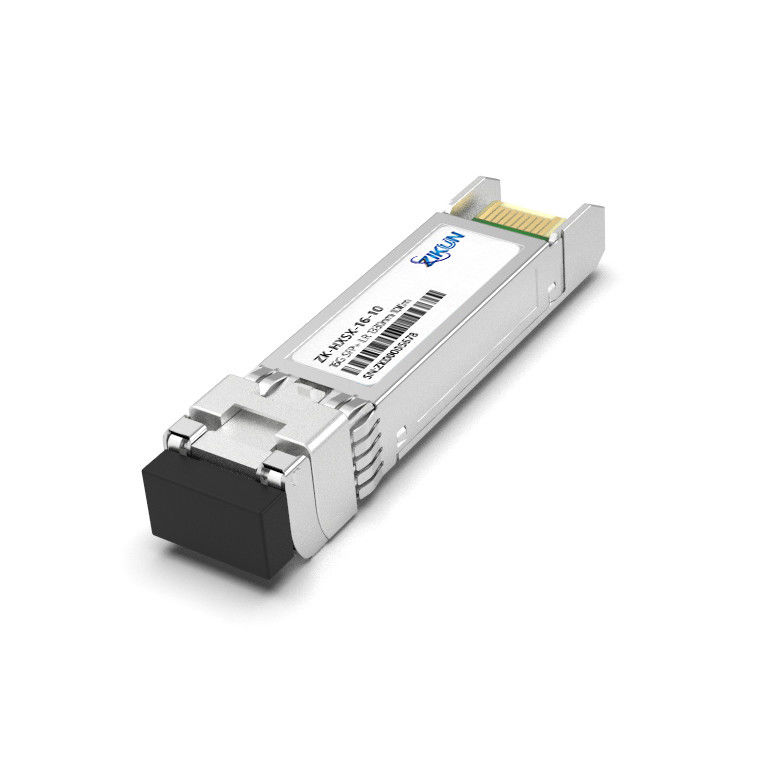

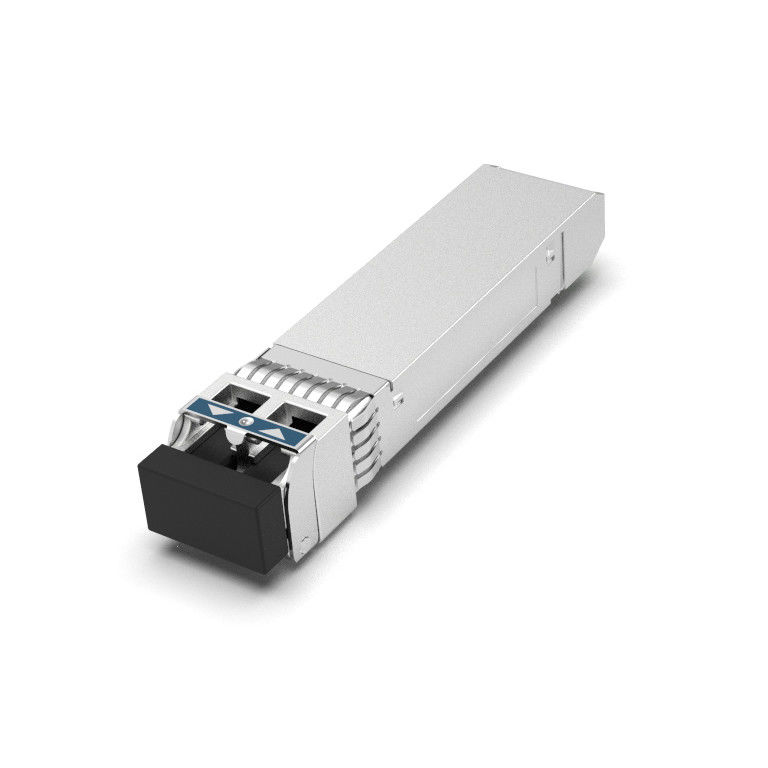

SFP Module 16G SFP+ LR 1330nm 10Km Optical Fiber Optic Transceiver
Product Features
⚫ Up to 14.025Gb/s data links
⚫ Hot-pluggable SFP+ footprint
⚫ Duplex LC type pluggable optical interface
⚫ Uncooled 1310nm DFB Laser
⚫ Build-in Dual CDR at 14.025Gb/s and bypass at 4.25Gb/s and 8.5Gb/s
⚫ Up to 10 km on 9/125um SMF
⚫ All-metal housing for superior EMI performance
⚫ Meet ESD requirements ,resist 8KV direct contact voltage
⚫ RoHS- 10 compliant and lead-free
⚫ Support Digital Monitoring interface
⚫ Single +3.3V power supply
⚫ Compliant with SFF+MSA and SFF-8472
⚫ Case operating temperature : 0°C to +70°C/ -40°C to +85°C
Ordering Information
Product Number |
Data Rate (Gb/s) |
Wavelength (nm) |
Reach (km) |
LD |
Tx Power (dBm) |
PD |
Rx Sens (dBm) |
Temperature (C) |
ZK-HXSX-16-10C |
14.025 |
1310 |
10 |
DFB |
-5~2 |
PIN |
<-12 |
0~70 |
ZK-HXSX-16-10I |
14.025 |
1310 |
10 |
DFB |
-5~2 |
PIN |
<-12 |
-40~85 |
