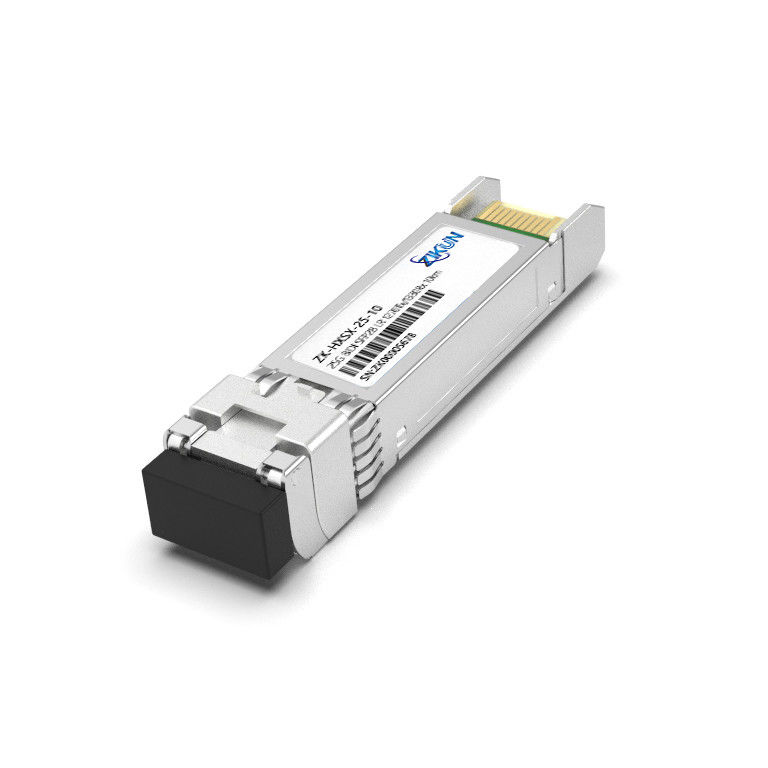

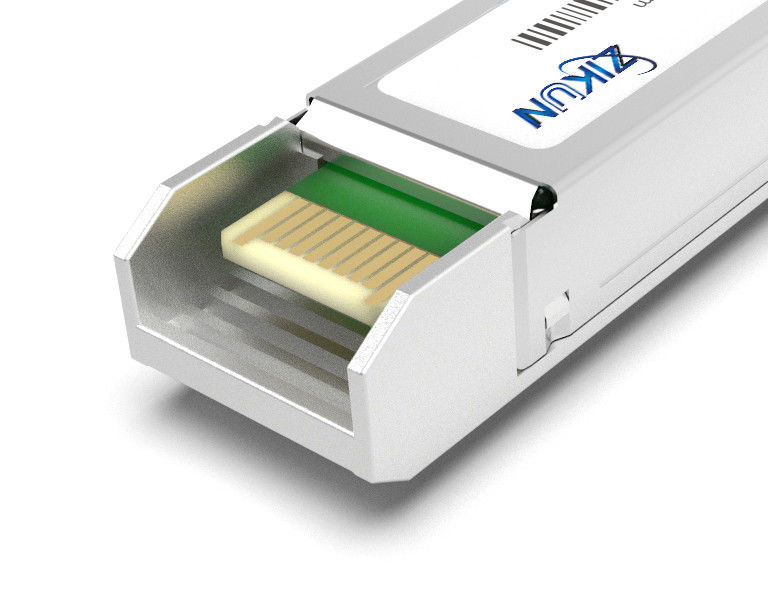

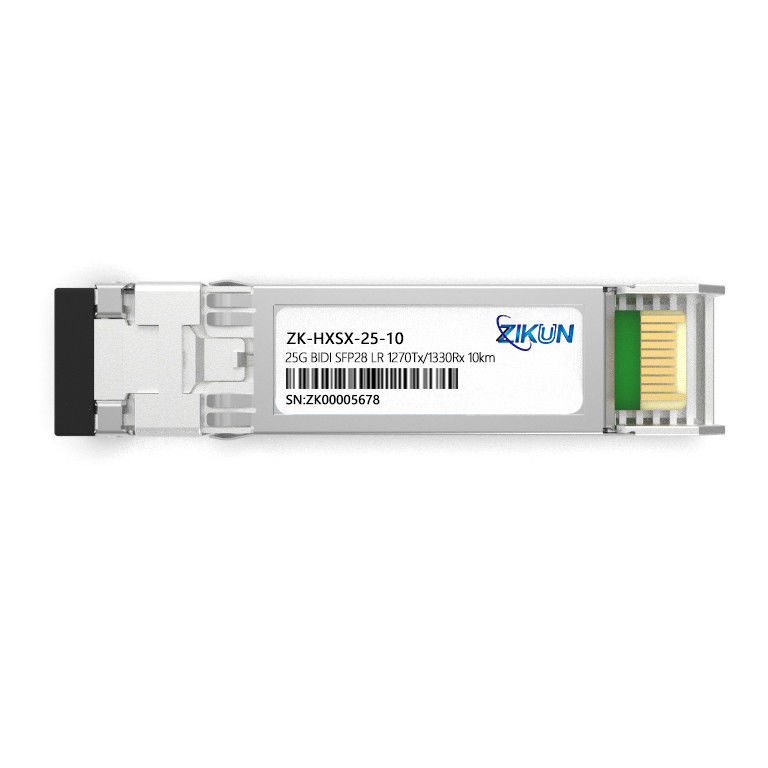

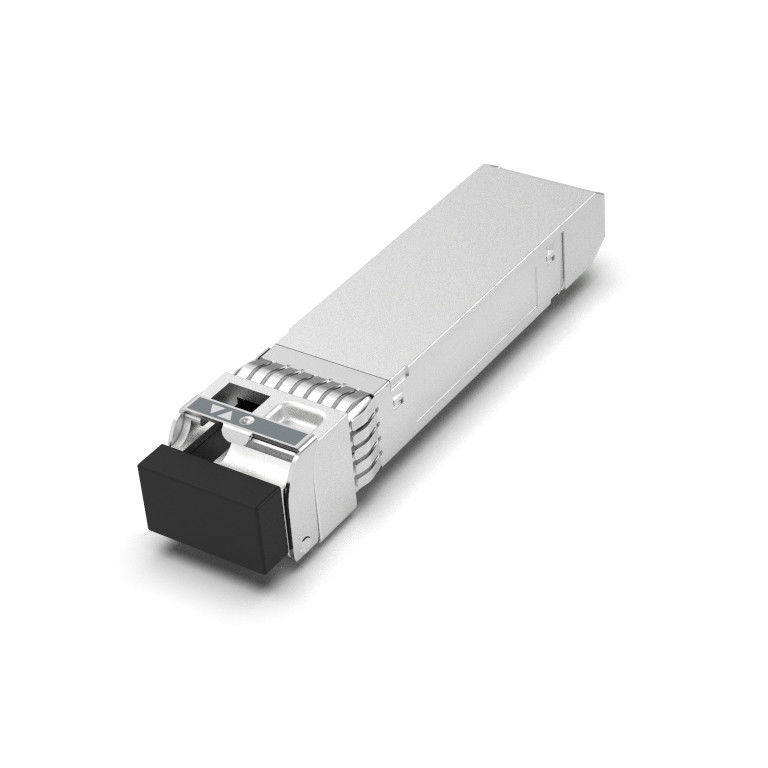

25G SFP28 BIDI LR Tx1270/Rx1330nm Optical Fiber Optic Transceiver
Product Features
⚫ Up to 25.78Gb/s data rate
⚫ 1270nm DFB laser and PIN receiver
⚫ 2-wire interface with integrated Digital Diagnostic capabilities
⚫ Up to 10km transmission on SMF
⚫ BIDI LC optical connector
⚫ Single +3.3V power supply
⚫ RoHS-10 compliant and lead-free
⚫ Compliant with SFF+MSA and SFF-8472
⚫ Maximum power consumption 1.5W
⚫ Metal enclosure, for lower EMI
⚫ Meet ESD requirements, resist 8KV direct contact voltage
⚫ Case operating temperature : 0°C to +70°C/ -40°C to +85°C
Ordering Information
Product Number |
Data Rate (Gb/s) |
Wavelength (nm) |
Reach (km) |
LD |
Tx Power (dBm) |
PD |
Rx Sens (dBm) |
Temperature (C) |
ZK-HXSX-25-10C |
25 |
1270 |
10 |
DFB |
-7.0~ 2.0 |
PIN |
< -14.0 |
0~70 |
ZK-HXSX-25-10I |
25 |
1270 |
10 |
DFB |
-7.0~ 2.0 |
PIN |
< -14.0 |
-40~85 |
