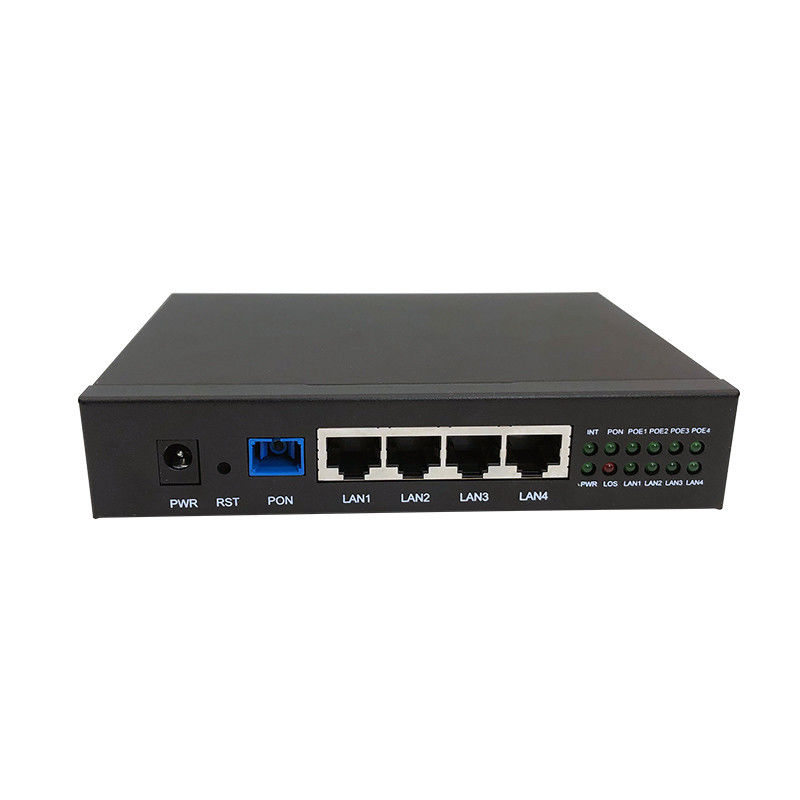

ZIKUN ZC-500P 4GE PoE+ GPON ONU Ironshell ONT UPC PoE and PoE+
ZC-500P is an ONU designed for scenarios such as enterprise campus and video backhaul. It provides 4 GE ports with PoE/PoE+ to provide high-quality voice, data, and HD video services.
GPONinterface(NNI):1 x GPON interface | ||
Optical port | ITU-T G.984 GPON standards,Flexible mapping between GEM Port and TCONT | |
Optical connector | SC/UPC | |
Receiving Sensitivity | -28dBm | |
Overload optical power | -8 dBm | |
Transmitting Optical Power | 0.5~5dBm | |
Transmit rate | 2.488Gbps downstream; 1.244Gbps upstream | |
Wavelength | Receiving(DOWN):1490nm;Transmitting(UP):1310nm | |
User Network Interface(UNI):4 GE(PoE/PoE+) | ||
Ethernet Port
|
• Ethernet port-based VLAN tags and tag removal | |
• VLAN transparent transmission | ||
• MAC address learning | ||
• Auto-adaptive 10 Mbit/s, 100 Mbit/s or 1000 Mbit/s | ||
• PoE and PoE+, complying with IEEE 802.3afandIEEE 802.3at | ||
Product Function | ||
Layer 2 Features | • MAC learning (SVL)/aging | |
• VLAN tagging for untagged packets | ||
• Support VLAN 1-4094 | ||
• VLAN transparent/translation | ||
Multicast | • IGMP multicast, effective use of broadband | |
• multicast VLAN | ||
Qos | • IEEE 802.1p, CoS | |
• WR,SP and FIFO queue scheduling algorithm | ||
• Port rate limit | ||
• Backpressure flow control(half-duplex) | ||
• IEEE 802.3x flow control(full-duplex) | ||
Manage | • Web/Telnet/OMCI | |
Physical Performance | ||
Dimensions (H x W x D) | 2.58CM*15.3CM*13CM | |
Weight | About 0.7Kg | |
Working temperature | -5°C ~ 60°C | |
Working humidity | 5% RH to 95% RH (non-condensing) | |
Power adapter input | 100–240 V AC, 50 / 60 Hz | |
System power supply | 56V DC | |
Static power consumption |
7W
|
|
Maximum power consumption |
9 W (POE port without PD); 77 W (POE port with PD having the maximum powerconsumption) |
