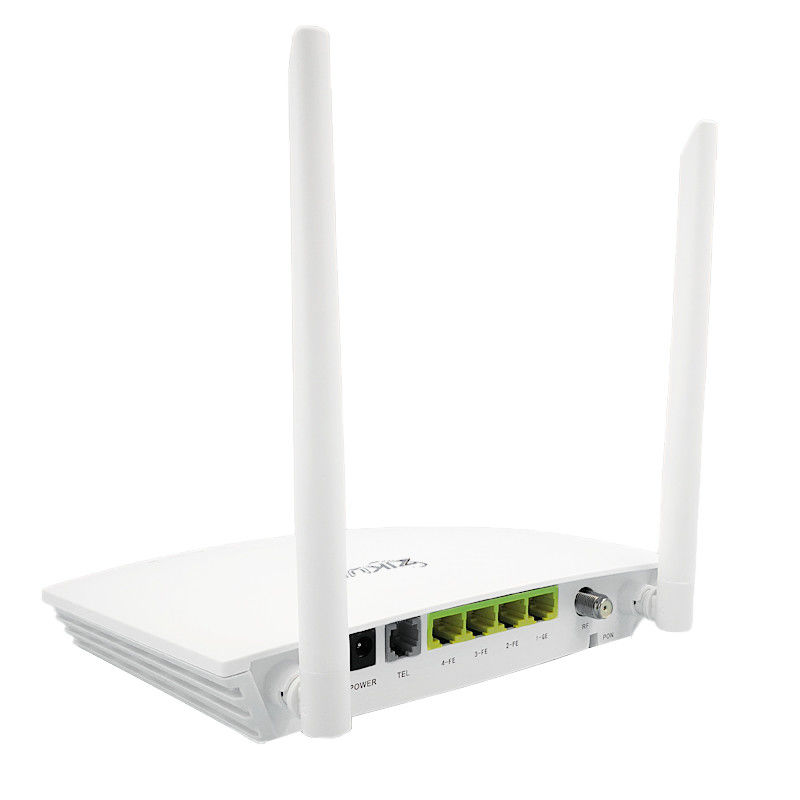

ZC-520 ONU CATV WIFI 1POTS 1GE 3FE 1Phone UPC ONT GPON EPON Modem Router

ZC-520 ONU CATV WIFI 1POTS 1GE 3FE 1Phone UPC ONT GPON EPON Modem Router

  • High Light

    ZC-520 ONU CATV WIFI

    ,

    UPC ONU CATV WIFI

    ,

    GPON EPON Modem Router

  • Transmission Speed
    Upstream 1.25Gbps /downstream 2.5Gbps
  • Type
    GPON ONU
  • WiFi
    IEEE 802.11b/g/n
  • Use
    FTTx Solutions
  • Optical Connector
    SC/UPC
  • User Interface
    4GE+1POTS+2USB+2.4G&5G WIFI
  • Brand Name
    ZIKUN
  • Model Number
    ZC-520T
  • Minimum Order Quantity
    1
  • Price
    25$
  • Delivery Time
    5-15 work days
  • Payment Terms
    T/T

ZC-520 ONU CATV WIFI 1POTS 1GE 3FE 1Phone UPC ONT GPON EPON Modem Router

ZIKUN ZC-520 GPON EPON ONT 1GE+3FE+1Phone UPC wifi ONU





Introduction

ZC-520 is a GPON Optical Network Terminal(HGU) designed for FTTH scenario. It supports L3 function to help subscriber construct intelligent home network. It provides subscribers rich, colorful, individualized, convenient and comfortable services including voice(VoIP), video (IPTV) and high speed internet access.







Features

  •  Integrated GPON port, conform with ITU-T G.984 standard;
  • Services effectively, provide 10/100/1000M RJ45 network interface, update existing networks smoothly;
  •  The Dynamic Bandwidth Allocation (DBA) mechanism enables all users to share the bandwidth reasonably, guarantee the QoS;
  •  Support IGMP multicast, make use of the bandwidth effectively;
  •  Support multicast VLAN;
  •  Support OMCI management protocol, including configuration, alarm, performance monitor, fault isolation and security management etc, support remote management through OLT;
  •  Support FEC and DBA;
  •  Support IEEE802.1Q VLAN protocol;
  •  Support IEEE802.1p protocol;
  •  Support remote loopback and network status diagnosis;
  •  Support cyber storm control.



Specifications



Model ZC-520T
User interface 3*10/100M RJ45,1*10/100/1000M RJ45,1*CATV,1*VOIP, 1*WiFi
PON

Transmission speed :upstream 1.25Gbps /downstream 2.5Gbps

Network coverage radius: 20km

Optical receive sensitivity: ≥-28dBm

Luminous power: <0dBm

Security: ONU authentication mechanism

WiFi IEEE 802.11b/g/n WIFI((300Mbps)
Protocol

Compliant with IEEE 802.3ah

YD/T 1475-2006

IEEE 802.1D, Spanning Tree

IEEE 802.1Q, VLAN

IEEE 802.1b/g/n

IEEE 802.1w, RSTP

IEEE 802.3ad (LACP)

Ethernet–II, Ethernet-SNAP

VLAN

Port-based VLAN

GVRP

IEEE 802.1Q VLAN

QoS

Backpressure flow control(half-duplex)

IEEE 802.3x flow control(full-duplex)

Prevent head of line

WR, SP queue scheduling algorithm

Port rate limit

Security

IEEE 802.1x, access control based on port; support local and remote RADIUS

CHAP,EAP certification

Storm control, port protection

Management

Support various management modes such as Web, TELNET

Support debug function

Environment

Operating temperature: 0℃~60℃;

Operating humidity: 10%~85% (no-condensation)

Storage temperature: -40℃~80℃;

Storage humidity: 5%~95% (no-condensation)

Power supply

Input AC 110~240V

Output DC 12V/1A

Power

Consumption

12W
