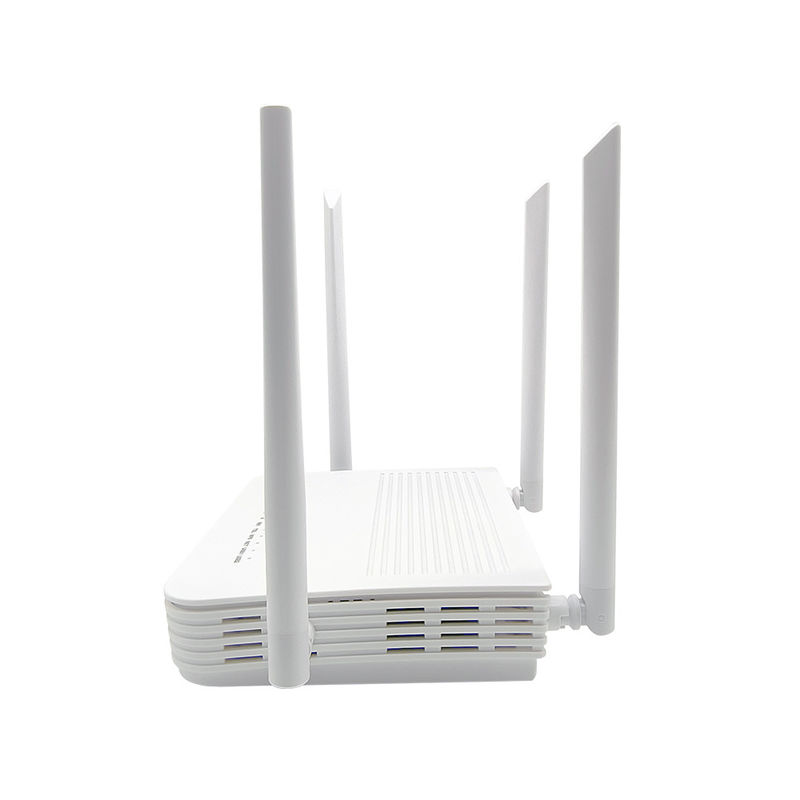

ZIKUN GPON ONU AX3000 WiFi6 ONT ZC-530NX6 4GE XG-PON OUN
ZC-530NX6 XG-PON ONU with 4GE+1POTS(option)+AX3000 WiFi port terminal devices are designed for fulfilling FTTH and triple play service demand of fixed network operators. These boxes are based on the mature Chipset (Realtek) technology, which have high ratio of performance to price, and the technology of IEEE802.11b/g/n/ac WiFi, Layer 2/3, and high quality VoIP as well. Support full management of HGU devices through ZIKUN OLT. They are highly reliable and easy to maintain, with guaranteed QoS for different service. And they are fully compliant with technical regulations such as IEEE802.3ah,ITU-T G.984.x and technical requirement of GPON Equipment from China Telecom.
Hardware Parameters
| Chipset: | ZX279131 |
| Size: |
18.7CM*12.6CM*4CM(withoutexternalantennaandpads)
|
| FLASH | 256MB |
| power adapter | DC 12V/1.5A |
| DDR | 512MB |
| case material | ABS |
| Port |
1*XGPON 1*reset 4*GE 1*WPS 1*USB2.0+1*USB3.0 1*Power on/off 1*DC 1*WLAN 1*VoIP Port(can choose ) |
| chip | ZX279131+MT7976+MT7916 |
| Uplink rate | 2.5Gbps |
| Downlink rate | 10Gbps |
| WiFi Transmission rate | 3000Mbps |
| operating system | Linux |
| Indicator light | power supply, registration, optical port, Internet access, network port 1~4, wireless, telephone (optional) |
| Antennel | 5 antennal |
| wireless bandwidth |
5G:20M/40M/80M/160M 2.4G:20M/40M |
|
Function |
TR069,APPcore remote control,andlink Smart Home Management,Real-time monitoring of soft probe data |
|
packing list |
OUN*1pcs,manual*1pcs,power adapter*1pcs |
