5-Port Gigabit Smart Cloud Mananged PoE Switch
ZC-S2005P 5-Port Gigabit Managed Switch with 4 PoE+ Ports
Gigabit access PoE switch fits needs in SMB network

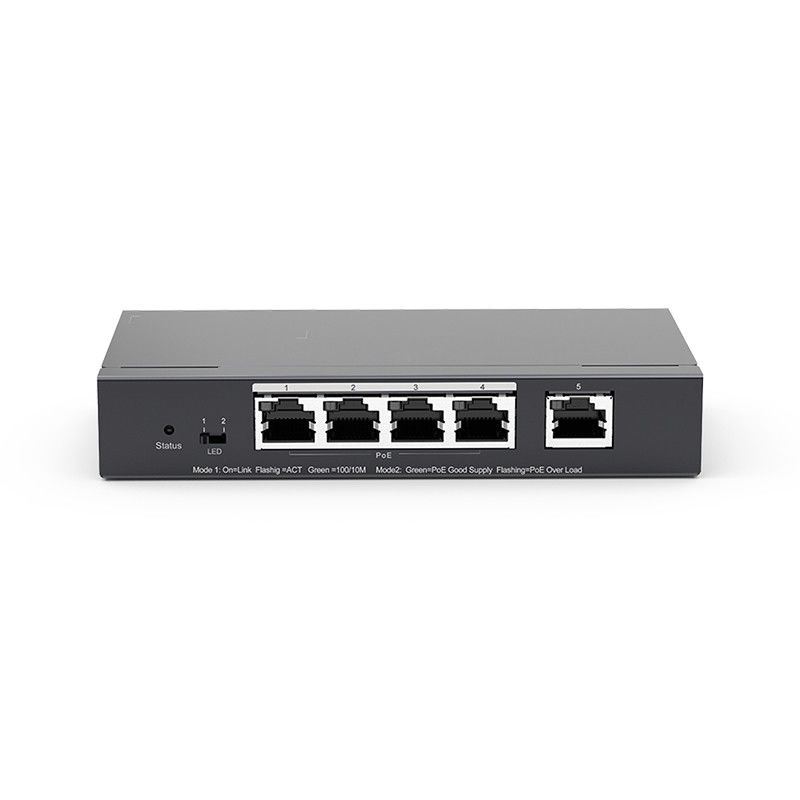

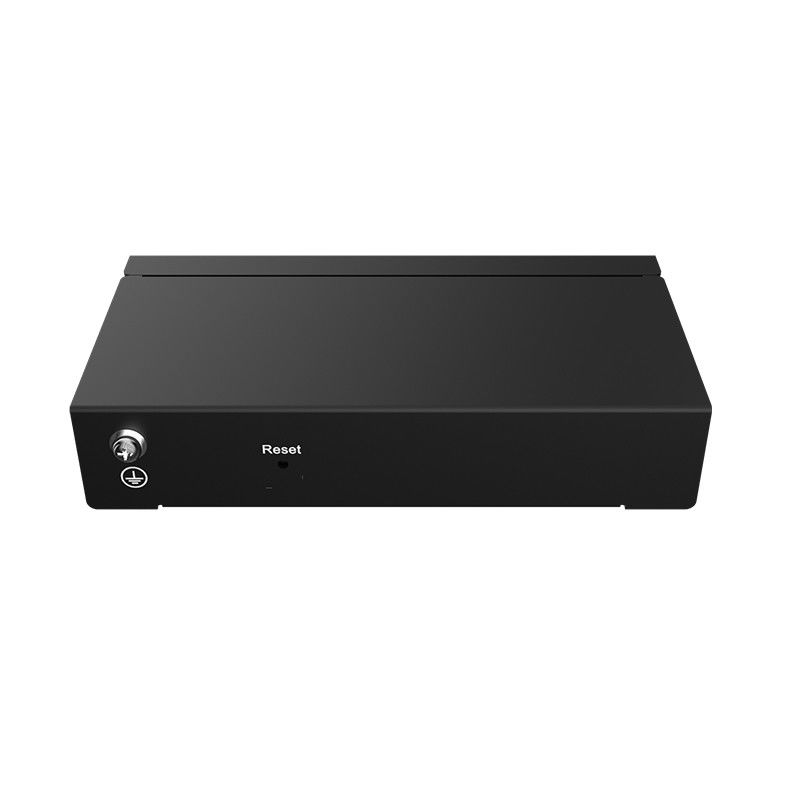

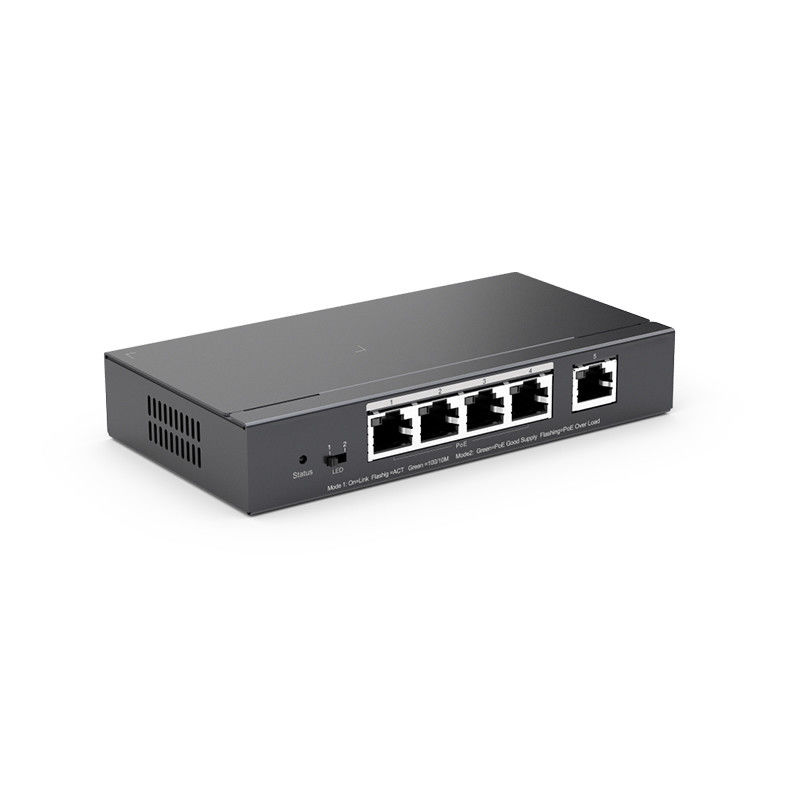

ZC-S2005P, 5-Port Gigabit Smart Cloud Mananged PoE Switch
It can be applied to enterprises, hotels, factories, education, retail, monitoring, etc.
Highlight Features
- 5-Port gigabit cloud managed switch with 4 PoE+ ports
- Cost-Effective Smart Cloud Managed Switches
- IP Camera Recognition, Unique Value for CCTV Network
- Automatic Loop Prevention Ensures Service Continuity
- Lifetime management on Zikun Cloud at anytime anywhere
Key Specification
| Ports |
5 x 10/100/1000Base-T, 4 x PoE+ ports |
PoE |
54W, IEEE 802.3at / IEEE 802.3af |
| Switching capacity |
10 Gbps |
Forwarding rate |
7.44 Mpps |
| MAC address table |
2000 |
Maximum VLAN |
16 |
| Fan |
Fanless |
Port surge |
4 kV |
| Dimensions (W x D x H) |
148 mm x 78 mm x 26 mm |
Weight (With package) |
0.9 kg |
| MTBF |
> 200,000 |
Warranty |
3 Years |
|
Model
|
ZC-S2005P
|
ZC-S2006P
|
ZC-S2009P
|
ZC-S2010P |
ZC-2016P
|
ZC-2024P
|
|
10/100/1000Base-T ports
|
5
|
6
|
9
|
10
|
16
|
24
|
|
1000Base-X SFP ports
|
NON
|
NON
|
NON
|
NON
|
2
|
2
|
|
PoE ports
|
4
|
4
|
8
|
8
|
16
|
24
|
|
Max. PoE budget
|
54W
|
54W
|
120W
|
70W
|
240W
|
370W
|
|
Switching capacity
|
10 Gbps
|
12 Gbps
|
18 Gbps
|
20 Gbps
|
36 Gbps
|
52 Gbps
|
|
Forwarding rate
|
7.44 Mpps
|
8.93 Mpps
|
13.39 Mpps
|
14.88 Mpps
|
26.78 Mpps
|
38.69 Mpps
|
|
MAC address table
|
2000
|
4000
|
4000
|
4000
|
8000
|
8000
|
|
VLAN
|
16
|
16
|
16
|
16
|
16
|
16
|
|
Weight (With package)
|
0.9 kg
|
0.79 kg
|
1.3 kg
|
1.38 kg
|
3.5 kg
|
4.2 kg
|
